Product Information

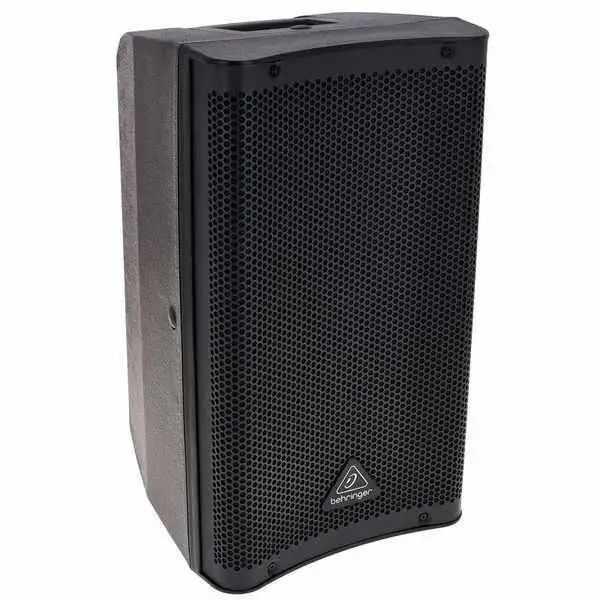

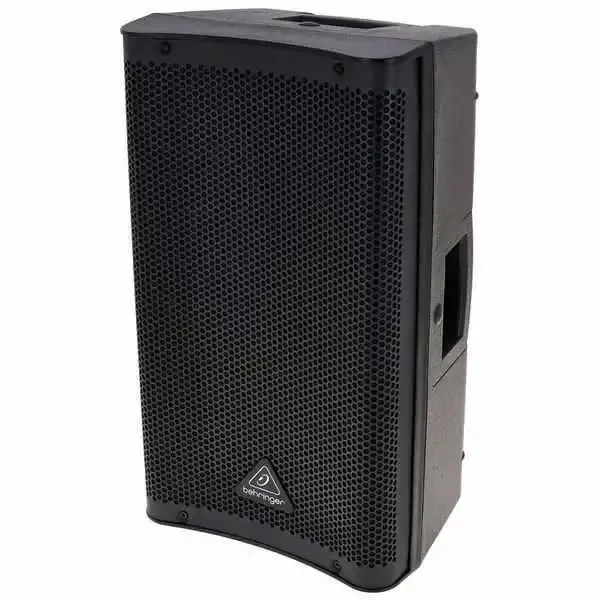

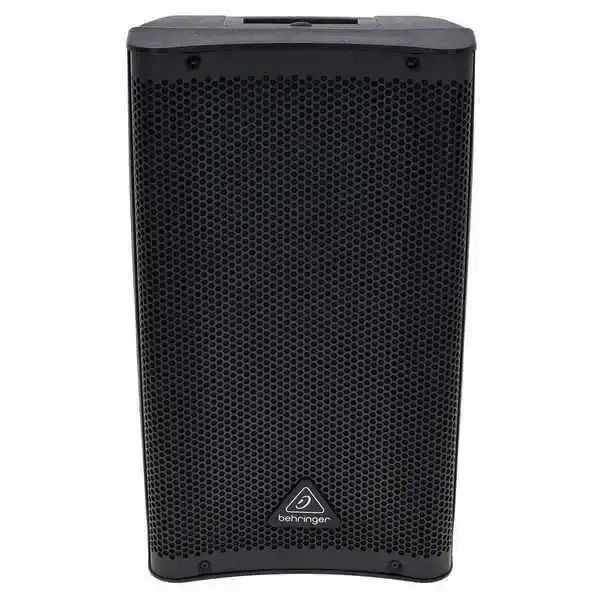

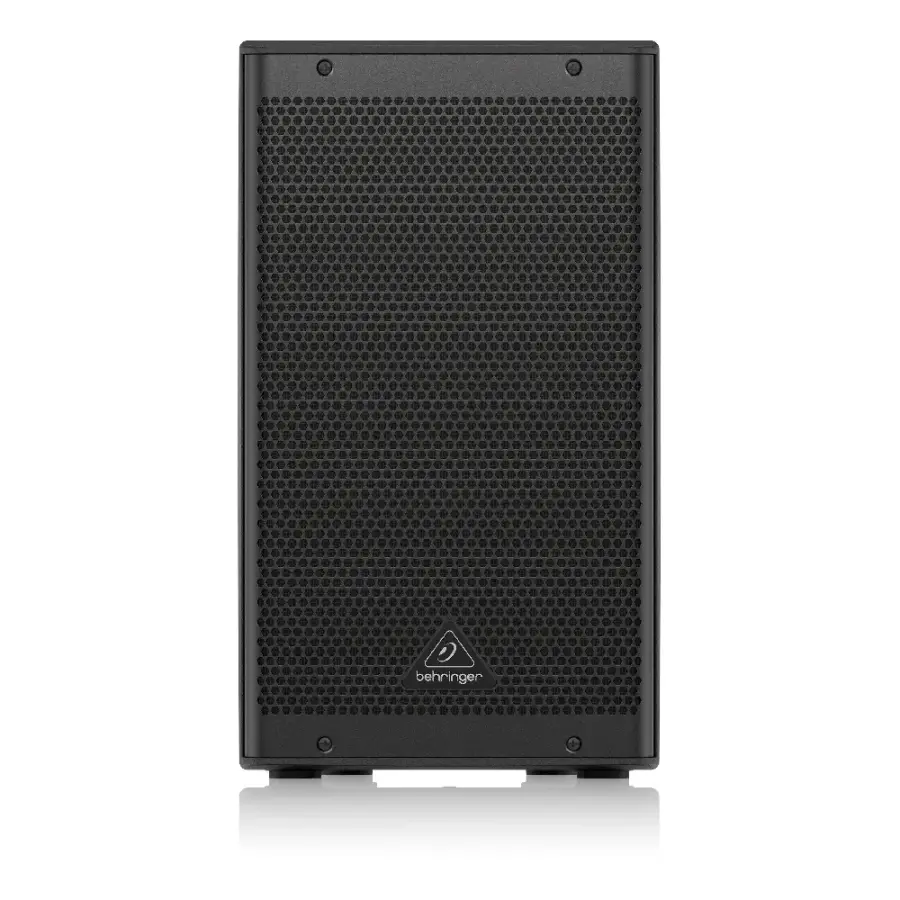

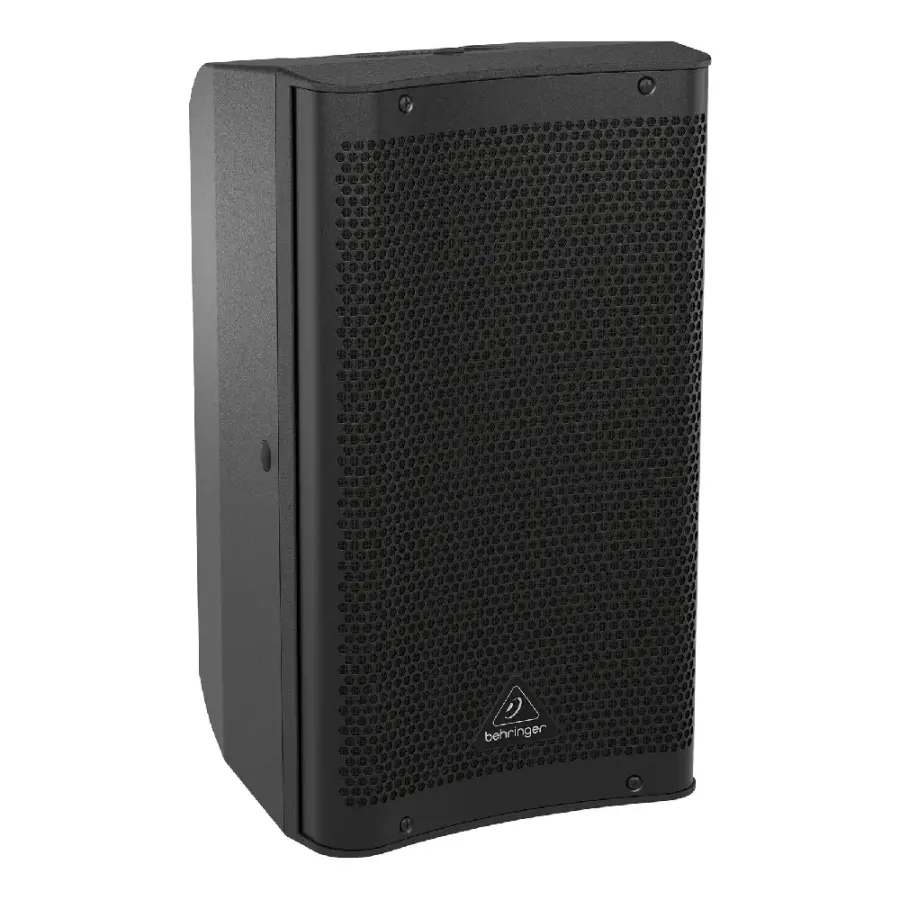

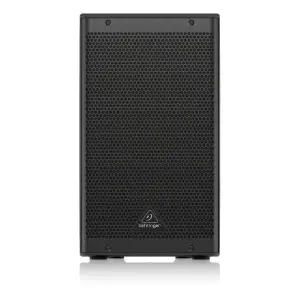

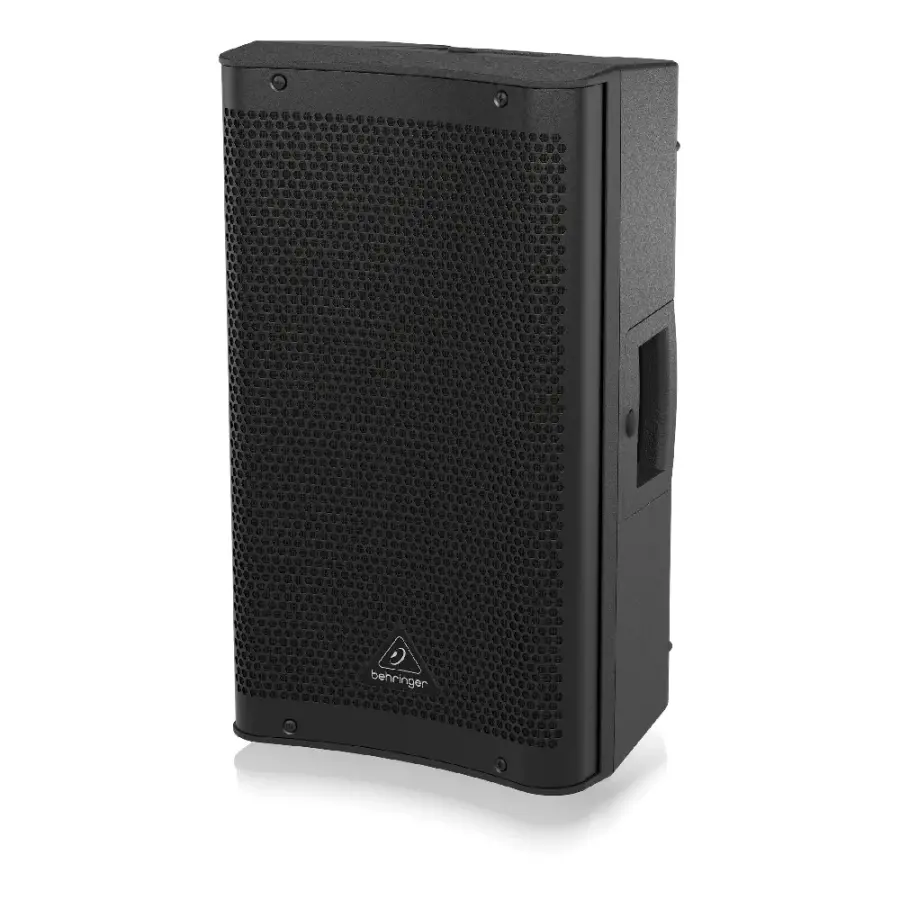

DR110DSP is a versatile active 1,000-watt 10" PA speaker system with DSP and 2-Channel Mixer. This High-Powered 1,000-Watt 2-way PA sound reinforcement speaker system is great for both live and playback applications. This ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels.
The product is designed to contain a dedicated DSP function for EQ, system control and speaker protection and Built-in Bluetooth* receiver. 2-channel mixer with individual Mic/Line inputs and level controls is also included. DR110DSP comes with revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super lightweight design for the everyday user. Extremely powerful 10'' long-excursion driver provides incredibly deep bass and acoustic power.
Features
- High-Power 1,000-Watt 2-way PA sound reinforcement speaker system for live and playback applications
- Ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels
- Dedicated DSP function for EQ, system control and speaker protection and Built-in Bluetooth* receiver
- 2-channel mixer with individual Mic/Line inputs and level controls
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Extremely powerful 10'' long-excursion driver provides incredibly deep bass and acoustic power
- High-performance DSP functions with optimisation for 4 unique sound programs: Music, Live, Speech, DJ/CLUB
- Excellent Low-Cut filter performance, switchable at 80, 100, 120 or 150 Hz
- State-of-the-art 1.35'' compression driver for exceptional high-frequency reproduction
- Ultra-wide dispersion, large-format exponential horn
- Additional Line output allows linking of additional speaker systems
- Versatile trapezoidal enclosure design allows different positioning: Stand mounting with 35-mm pole socket Tilts on its side for use as a floor monitor
- Ergonomically shaped handles for easy carrying and setup
- High-quality components and exceptionally rugged construction ensure long life
- Designed and engineered in Germany
Specifications
- Amplifer
- Maximum Output Power: 1000W
- Type: Class-D + Class-AB
- Protection: Auto-standby, short circuit, open circuit, thermal
- Controls
- Hardware: Rotary push-encoder, input gain controls
- Loudspeakers/System Data
- Woofer: 1 x 10" (254mm) LF driver
- Tweeter: 1 x 1.35" (34.4mm) HF compression driver
- Frequency Response: 55Hz - 19kHz
- Nominal Dispersion: 90°H x 60°V
- Maximum SPL: 132dB
- Crossover: 2-way active
- Limiter: Independent HF, LF

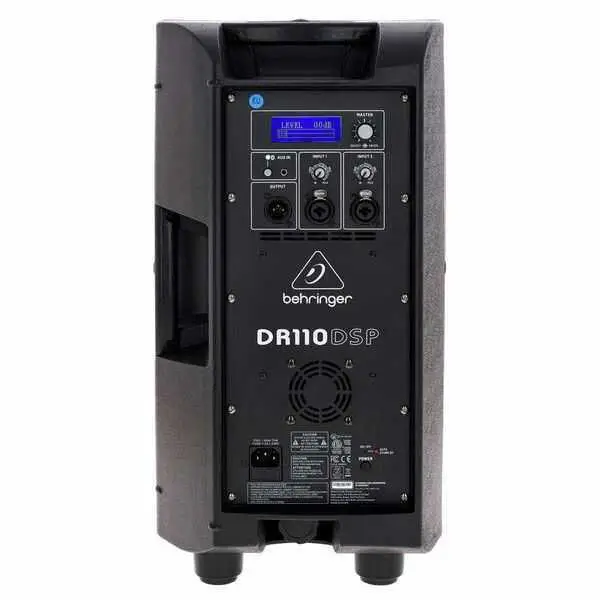

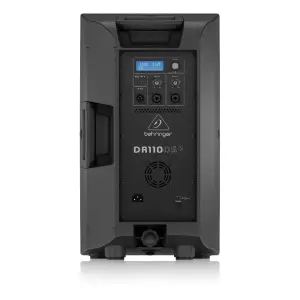

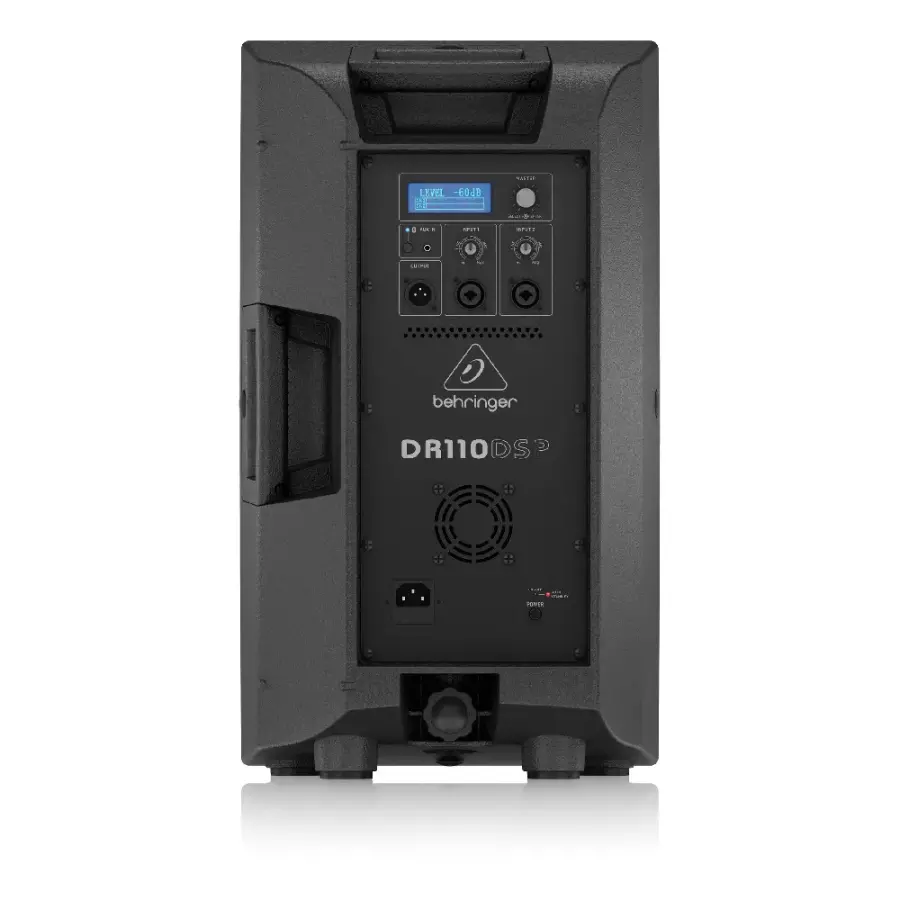

- Audio Connections
- Input 1/2: 2 x XLR/ 1/4" TRS combo jacks (servo-balanced)
- Impedance: 20kΩ, balanced / 10kΩ, unbalanced
- Sensitivity: -26dBu, nominal
- Max. Input Level: 0dBu
- Aux In: 1 x 1/8" TRS, stereo
- Output: 1 x XLR
- Impedance: 200Ω balanced, 100Ω unbalanced
- Max. Output Level: -7dBu
- Digital Signal Processor (DSP)
- Display: LCD 128 x 3, amber backlit
- Factory EQ Presets: Music, DJ, live, speech
- Equalisation: Low, mid, high
- Bass: +/- 12dB @ 80Hz, shelving
- Middle: +/-12dB @ 2.5kHz, parametric, Q = 0.5
- Treble: +/- 12dB @ 12kHz, shelving
- Low-Cut Filter: 80/100/120/150 Hz, switchable
- Protection: Lockout function for all settings
- Bluetooth
- Frequency Range: 2402MHz - 2480MHz
- Channel Number: 79
- Version: Bluetooth spec 4.2 compliant
- Compatibility: Supports A2DP 1.2 profiles
- Max. Communication Range: 15m (without interference)
- Max. Output Power:
- Power Supply Voltages:
- USA/Canada/Japan: 110V , 60Hz (T 3.15 AL 250V)
- UK/Australia/Europe/Korea/China: 230V , 50Hz (T 2 AL 250V)
- Power Consumption @ 1/8 Max Power: 75W
- Mains Connection: Standard IEC receptacle
- Dimensions/Weight
- Dimensions (H x W x D): 521 x 302 x 312 mm
- Weight: UL: 13.3kg, EU: 13.1kg
