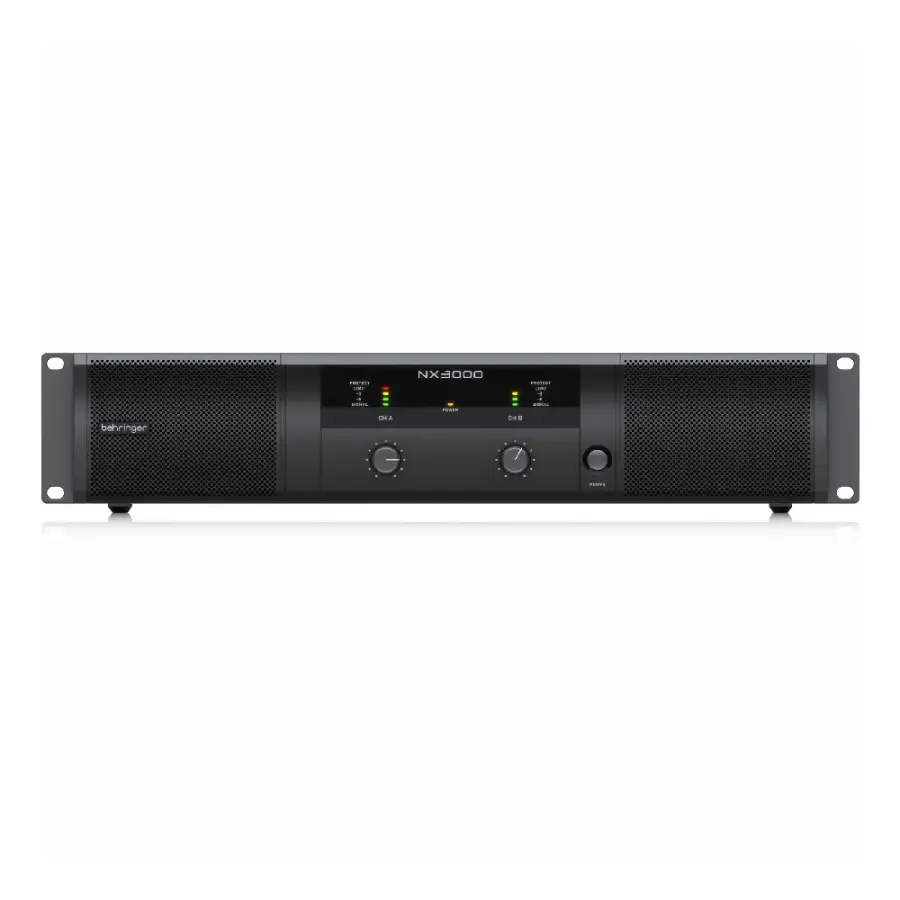

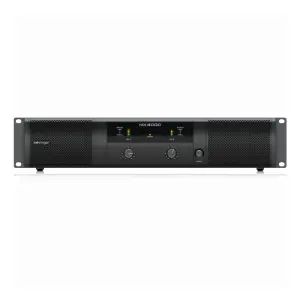

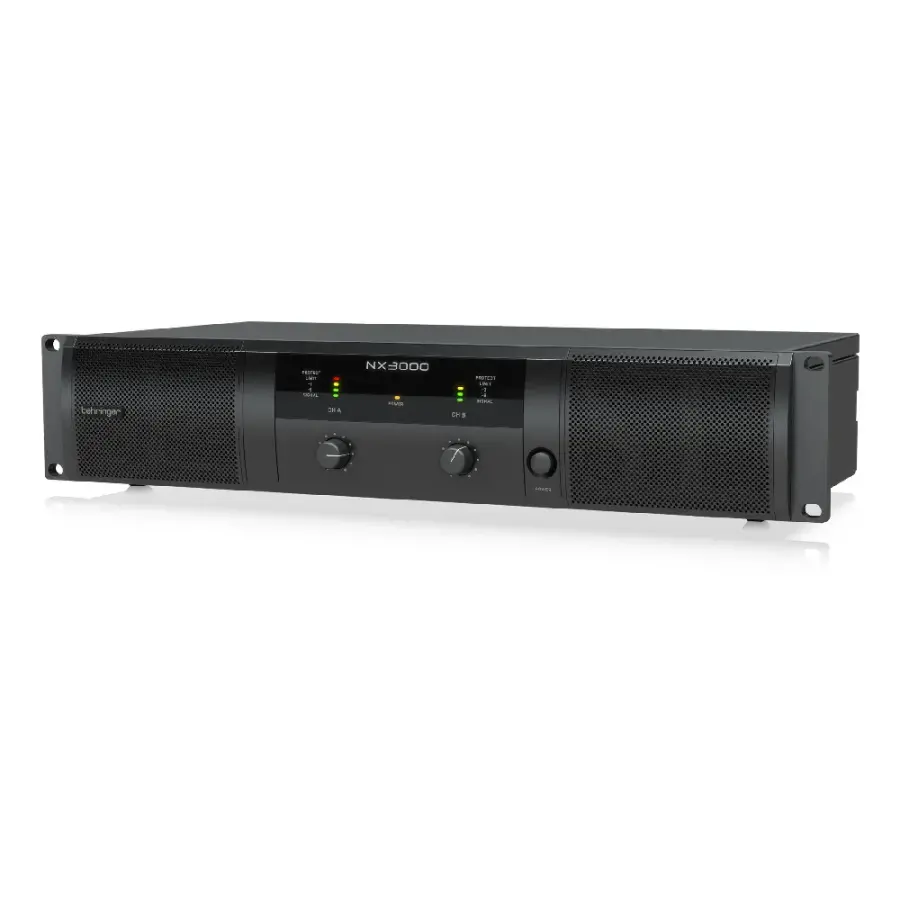

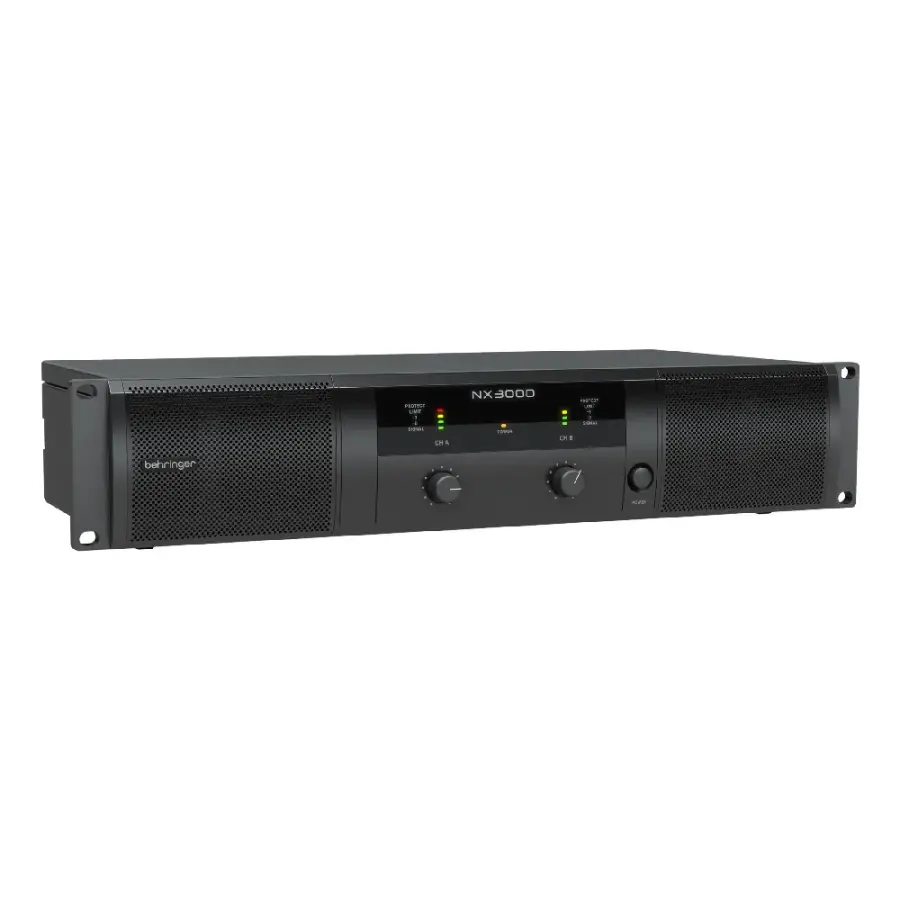

The Behringer NX3000 Power Amplifier packs a powerful 3000 watts into an exceptionally light-weight and rack-mountable package. You'll be provided with an amplifier which runs far more efficiently than conventional designs. This is because the NX3000 does not require the massive heat sinks and heavy toroid transformers associated with similar models. You'll be guaranteed maximum output level with exceptionally reliable overload protection thanks to the NX3000's "zero-attack" limiters. With revolutionary high-density Class D technology and an ultra switch mode power supply this ultra-lightweight workhorse will drive your rig effortlessly for many years.
Full Description
What is class-D technology?
Class D amplifiers are incredible. Unlike Class AB circuitry they only deliver power when necessary, switching on and off in multiple instances per second. This is excellent for reducing power losses from output devices which can lead to greater heat. Thanks to Class D technology Behringer no longer require massive heat sinks, resultantly making their products lighter. This no-compromise design ensures that all products featuring Class D technology will provide you with amazing fidelity and continuous power without rest cycles.
Features
- Delivers 2 x 1500 watts into 2 ohms, 2 x 900 watts into 4 ohms or 3000 watts into 4 ohms (bridged)
- Cool-running high-density Class-D technology with ''near-zero'' thermal buildup
- Ultra-efficient switch-mode power supply ensures noise-free audio with superior transient response and low power consumption
- Built-in stereo crossover with low-cut, high-cut and full range modes
- SmartSense loudspeaker impedance compensation for linear frequency response at any speaker load impedance
- "Zero-Attack" limiters offer maximum output level and reliable overload protection
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs
- XLR and 1/4'' TRS combo input connectors
- Professional twist-lock speaker connectors
- Independent DC, LF and thermal overload protection on each channel
- ''Back-to-front'' ventilation design prevents thermal buildup
- Designed and engineered in Germany
Specifications
Maximum Output Power
- Stero/4-Channel:
- 2 Ohms Per Channel, Stereo: 2 x 1500W
- 4 Ohms Per Channel, Stereo: 2 x 900W
- 8 Ohms Per Channel, Stereo: 2 x 440W
- Bridge Connection:
- 4 Ohms: 3000W
- 8 Ohms: 1500W
General
- Controls: Power Switch, 2x Gain, Mode Switch, Crossover Switch
- Indicators: Power (Amber ED)
- Input Sensitivity for Rated Power into 4 Ohms: 0.775V (0dBu)
- Inputs: 2 x Combo Jacks
- Input Impedance: 10 kOhms Unbalanced, 20 kOhms Balanced
- Outputs: 2 x l Locking-Style Professional Speaker Connectors
- Output Circuit Type: Class D
- Distortion: Less Than 0.05 Percent
- Frequency Response: 20 Hz to 20 kHz, +0 / -1 dB
- Damping Factor: More Than 145 at 8 Ohms
- Signal-to-Noise: More Than 100 dB
Circuit Protection
- Cooling: Continuously Variable Speed Fan, Back-to-Front Air Flow
- Amplifier Protection: Thermal and DC Protection, Stable into Reactive or Mismatched Loads
- Load Protection: On/Off Muting, DC-Fault Power Supply Shutdown
Dimensions
- Rack Spaces: 2U
- Height: 3.7''
- Width: 19''
- Depth: 9.1''
- Weight: 7.7 lbs
