Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array - 1
Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array - 2
Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array - 3
Zoom

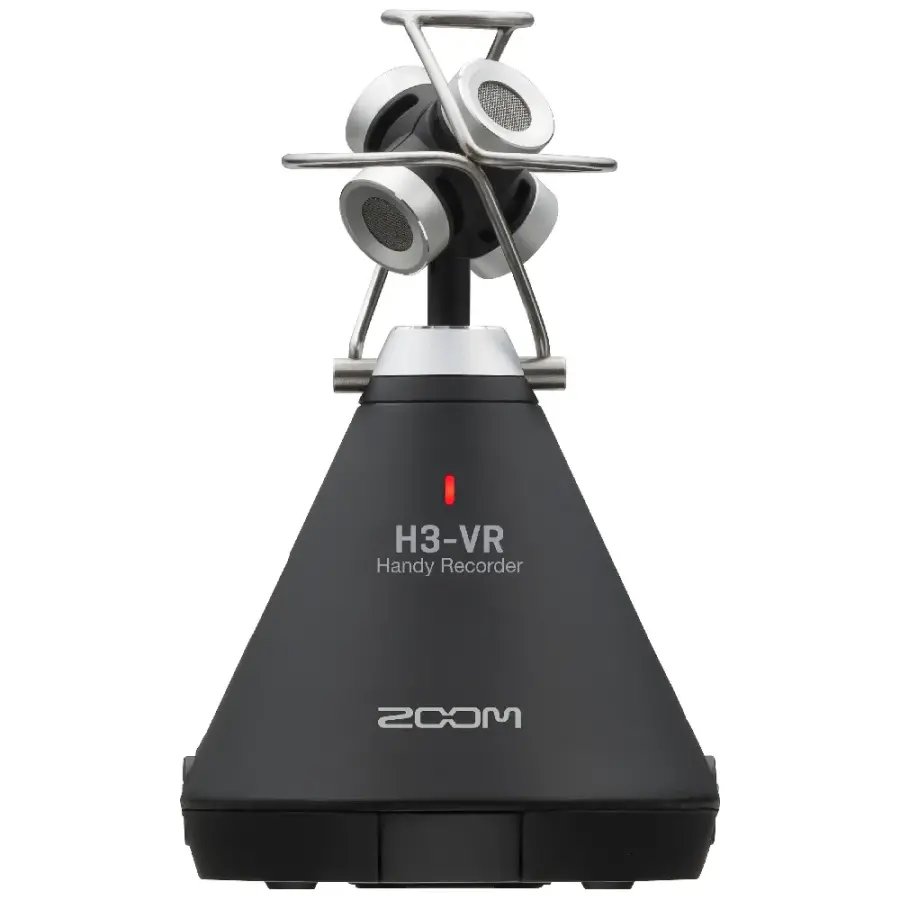

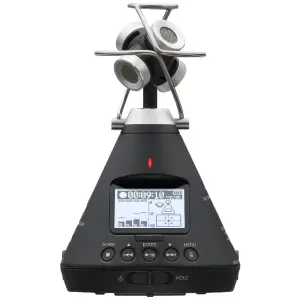

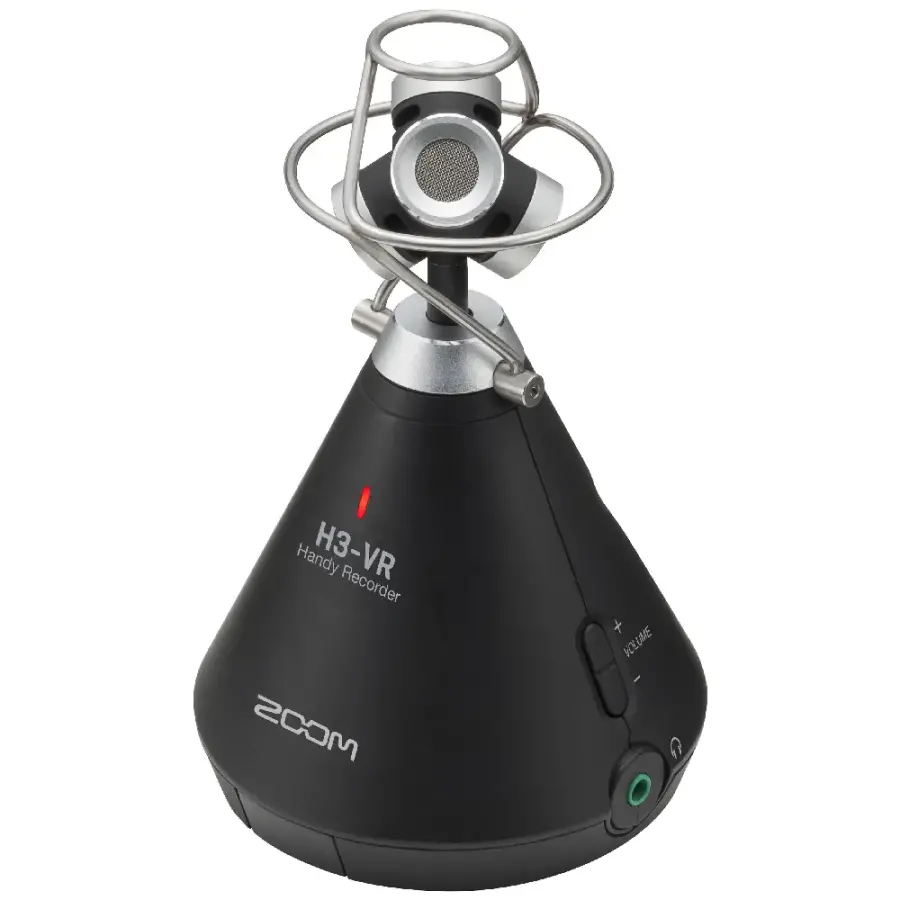

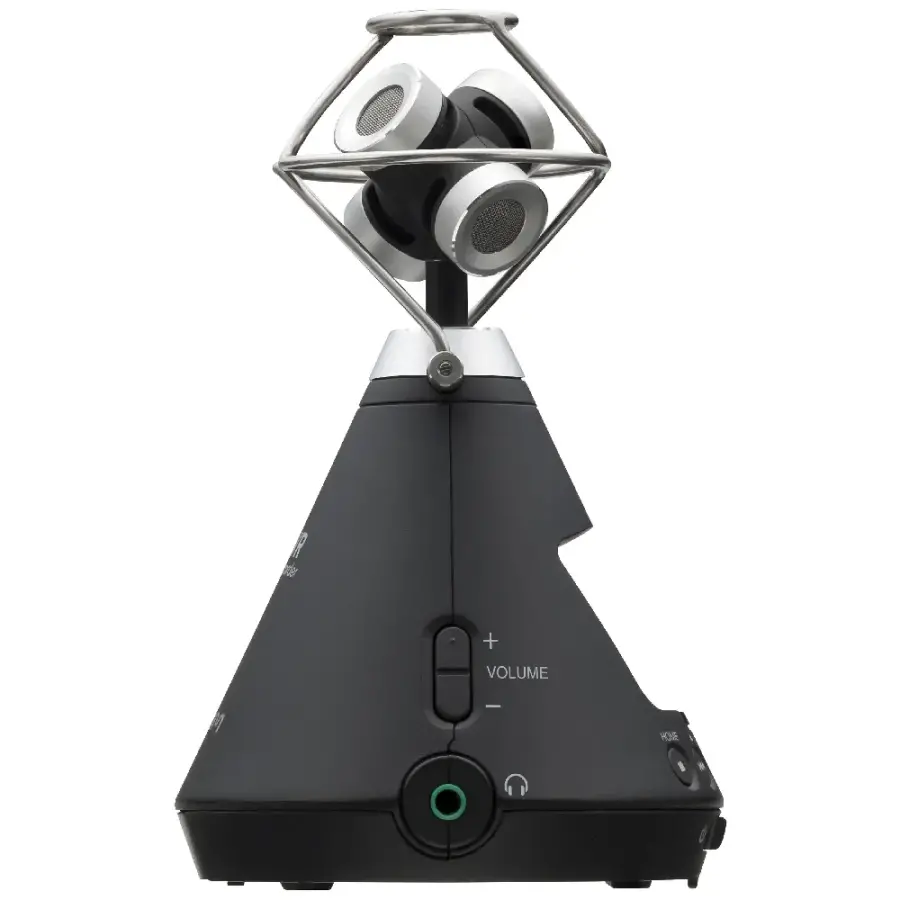

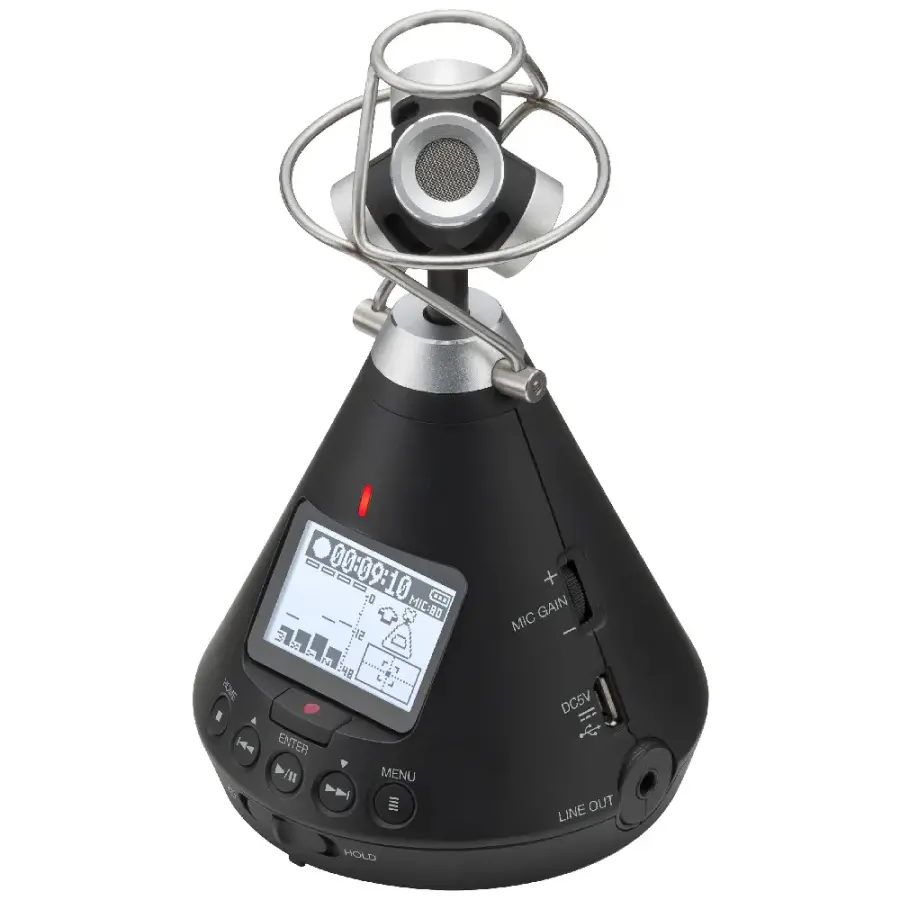

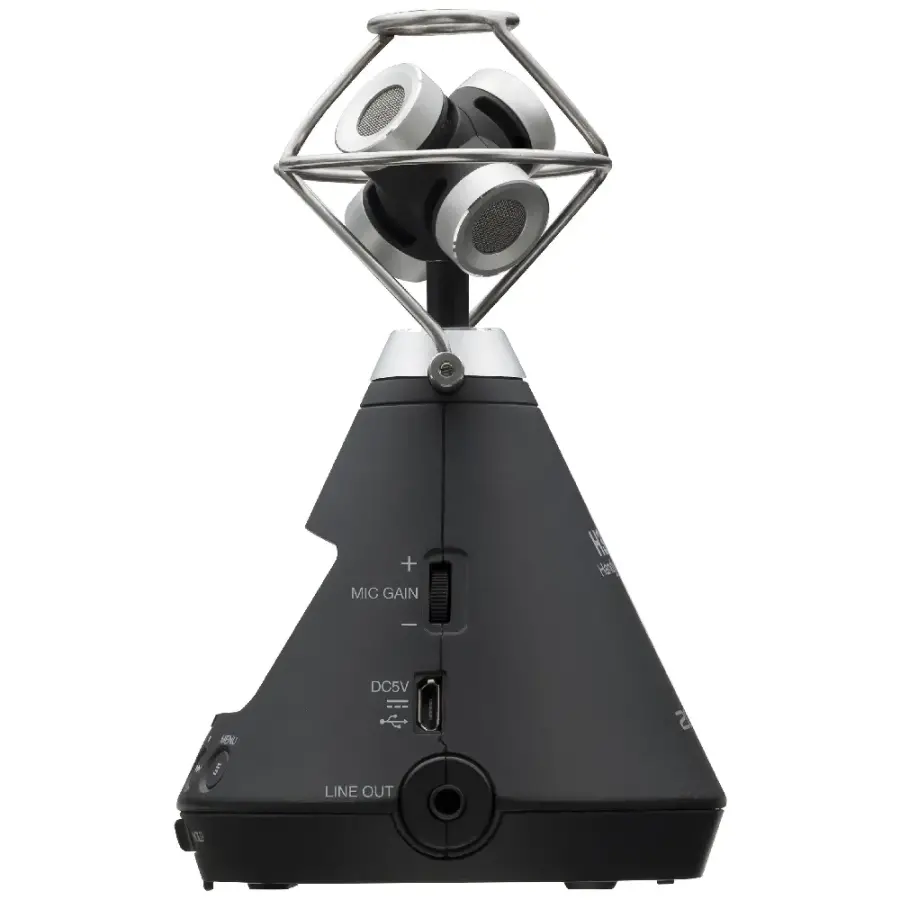

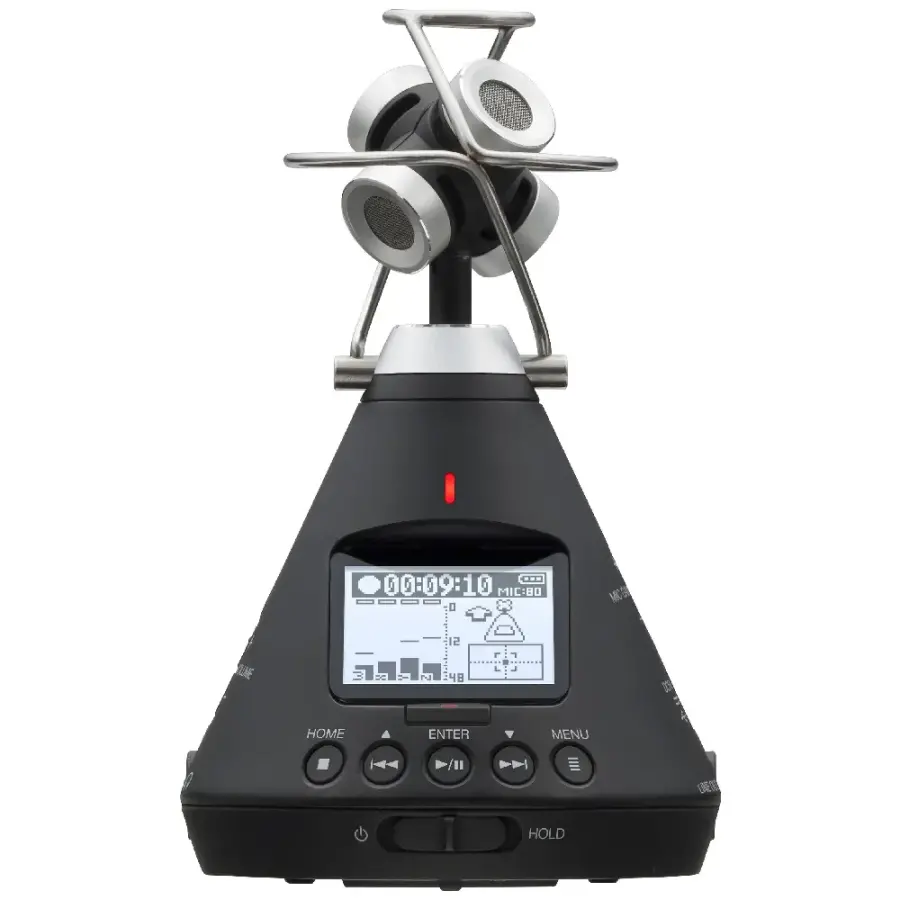

Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array

Product Code : 110121520020
20,932.69 TL
20,087.14 TL
Money Order Price
19,685.39 TL
Featured Information
  • For Video, Audio, VR & AR Production
  • Ambisonics, Binaural & Stereo Modes
  • Export to 5.1 Surround via Computer
  • Ambisonics Array with Four Microphones
  • Onboard Ambisonics A-to-B Conversion
  • Up to 24-Bit / 96 kHz Resolution
  • Built-In Slate Function
  • 3.5mm Output with Binaural Monitoring
  • Record to microSD Card or Stream via USB
  • Automatic Mic Position Detection
21.12.2024 tarihine kadar kargoda
Ücretsiz Kargo
2 Yıl Garanti
Kolay İade
Delivery Information: Free Shipping

The Zoom H3-VR Handy Audio Recorder is a compact audio recorder with a built-in Ambisonics mic array offering flexible 360° audio capture as well as integrated Ambisonics A-to-B conversion, eliminating the need for external processing. The device goes well beyond VR applications, and is additionally geared towards sound recordists, audio engineers, and content creators in music, audio-for-video, game audio, and AR production.

It features an Ambisonics mic array with four microphone capsules, which can be utilized to record in Ambisonics, stereo binaural, or standard stereo modes, making it well suited for detailed reproduction of studio-based instrument ensembles and solo performances, audiences, sound effects, EFP, and more. The H3-VR supports full-sphere surround sound recording at up to 24-bit / 96 kHz, as well as real-time stereo/binaural monitoring and onboard Ambisonics A-to-B conversion, eliminating the need for additional processing with a computer in post. You can even export your Ambisonics recordings as stereo, binaural, or 5.1 audio files using the free Zoom Ambisonics Player software (downloadable to a Mac or Windows computer).

The unified single-knob gain control, LCD screen, and transport/menu buttons deliver easy and efficient device configuration and operation. Remote access to transport controls, levels, and metadata is possible via the iOS H3-VR Control app and optional BTA-1 Bluetooth adapter. An integrated 6-axis motion sensor is utilized to provide automatic detection of the microphone position, which ensures proper audio-to-video orientation alignment and simple angle leveling. Dual 3.5mm outputs with independent level control enable simultaneous connection to headphones and a camera. Record to a microSD/microSDHC/microSDXC card (available separately), or stream audio via USB to a computer or iOS device. The built-in slate function can be used to verbally mark takes and manually align audio and video files.

The H3-VR supports powering via two AA batteries or a USB connection, and its power LED also serves as a clip indicator. A 1/4"-20 threaded hole on the bottom of the H3-VR accommodates attachment to a standard camera tripod. At less than 5" tall and 3" wide, this recorder is visually discreet and unobtrusive. It is supplied with a foam windscreen and a dual mount adapter.

Music Recording Applications in Stereo or 3D Sound:
Accurately capture rehearsals, ensembles, and solo performances in recording studios and concert halls; you can spice up your stereo recordings with the binaural mode that tracks at up to 24-bit / 48 kHz to enhance 2D productions with spatially accurate imaging compatible with standard headphones
Sound for Film
Record dynamic Foley, sound effects, and ambience for film, television, and video game projects for Dolby Atmos Surround Sound as well as 5.1 Surround processing with the included Mac/PC software
Sound for VR
Record true 360° Ambisonic audio for immersive VR (virtual reality) and AR (augmented reality) in four channels at up to 24-bit / 96 kHz resolution for detailed 360° audio
Live Streaming Audio
USB 2.0 audio interface mode supports live streaming and recording via USB Micro-B connection
Versatile Playback, Decode, and Export Functions
Onboard decoder automatically converts the raw Ambisonics A audio to VR-ready Ambisonics B audio, so it can easily be paired with your 360-video
Export Ambisonics recordings as 5.1 surround files via free Zoom Ambisonics Player software for Mac and Windows
6-axis motion sensor provides automatic detection of mic position, enabling the audio and video orientations to stay aligned from scene to scene regardless of mic placement
Integrated Ambisonics playback allows you to rotate the H3-VR to simulate spatial audio while listening
Supports real-time headphone monitoring in stereo binaural or simulated 360° mode
Separate 3.5mm headphone and line outputs with independent volume adjustment allow simultaneous connection to your headphones and camera
Easy Controls
Onboard LCD screen displays direction of microphone orientation to suit the position of the H3-VR
Straightforward buttons include home, play/pause, forward, back, and menu
Hold function locks the H3-VR's settings while recording
Simultaneously adjust gain for all mic capsules via a single knob
H3 Control App allows remote access to transport controls, levels, and metadata notes via your iOS device and optional Zoom BTA-1 Bluetooth adapter, allowing you to control the device in real time without being in the shot—an important consideration for VR audio capture
Included mounting bracket allows you to mount the H3-VR to your VR camera
Precise Audio Quality
Sample rate stability is achieved through the use of an accurate internal clock (only 0.5 ppm variance)
Built-in limiter ensures clean recordings by inhibiting clipping
Control low frequencies and attenuate rumble with the adjustable high-pass filter
Multiple Powering Methods
Two AA lithium batteries will power the H3-VR for up to 24 hours
Two AA NiMH batteries will power the H3-VR for up to 11.5 hours
Alternatively power the H3-VR via a USB battery pack, 5 VDC USB connection, or compatible AC adapter

Zoom H3-VR Audio Recorder Features:

  • 4 built-in microphones in an Ambisonic array for full-sphere surround recording
  • Operates as a standalone recorder or as a USB 2.0 audio interface
  • Supports microSD/microSDHC/microSDXC cards (sold separately) up to 512GB for extended recording sessions
  • Single-knob gain control for all microphones
  • Built-in Ambisonics A to B encoding
  • 3 recording modes include Ambisonics (surround), stereo binaural, and standard stereo
  • Up to 24-bit/96kHz resolution
  • Headphone output and line output for monitoring your recordings
  • Slate tone allows you to mark recordings for easy synchronization in your DAW
  • Extensive metadata capabilities for professional applications
  • Auto Mic Position Detection uses a 6-axis gyroscope to make it easy to capture balanced, properly oriented surround audio
  • Level function ensures precise angle placement
  • Wireless iOS remote control capabilities with the BTA-1 Bluetooth adapter (sold separately)
  • Onboard Ambisonics playback with audio rotation
  • Free software can be downloaded to play files, change direction, and convert to binaural, stereo, or 5.1 surround formats
  • Powered by 2 AA batteries or USB bus power





    Tech Specs

    • Audio Interface:360 VR Audio Recorder
    • A/D Resolution:24-bit/96kHz
    • Simultaneous Rec Tracks:4 x 2, 2 x 2
    • Simultaneous Play Tracks:4
    • Built-in Mic(s):4 x Condenser Unidirectional Mics, Ambisonic Array
    • Analog Outputs:1 x 1/8" TRS (line out)
    • Headphones:1 x 1/8" TRS
    • Memory (removable):MicroSD/SDHC/SDXC (up to 512GB)
    • File Format:Ambisonic A/B, WAV 4ch Poly, WAV Stereo, Wav Binaural Stereo
    • EQ:Low Cut Filter
    • USB:1 x Type Micro-B
    • Software:Zoom PC/Mac Post Production Software (play, change direction, converting audio)
    • Power Supply:2 x AA batteries (Alkaline, rechargeable NiMH, 1.5V Lithium), 5V DC USB power supply adapter (sold separately)
    • Battery Life:11 hours
    • Stand Mountable:Dual Mounting Bracket (included), 6-axis Gyroscope (upfront, upside down, endfire, endfire inverted)
    • Height:4.84"
    • Width:2.99"
    • Depth:3.07"
    • Weight:0.26 lbs. (main unit)
Warranty
2 Years
