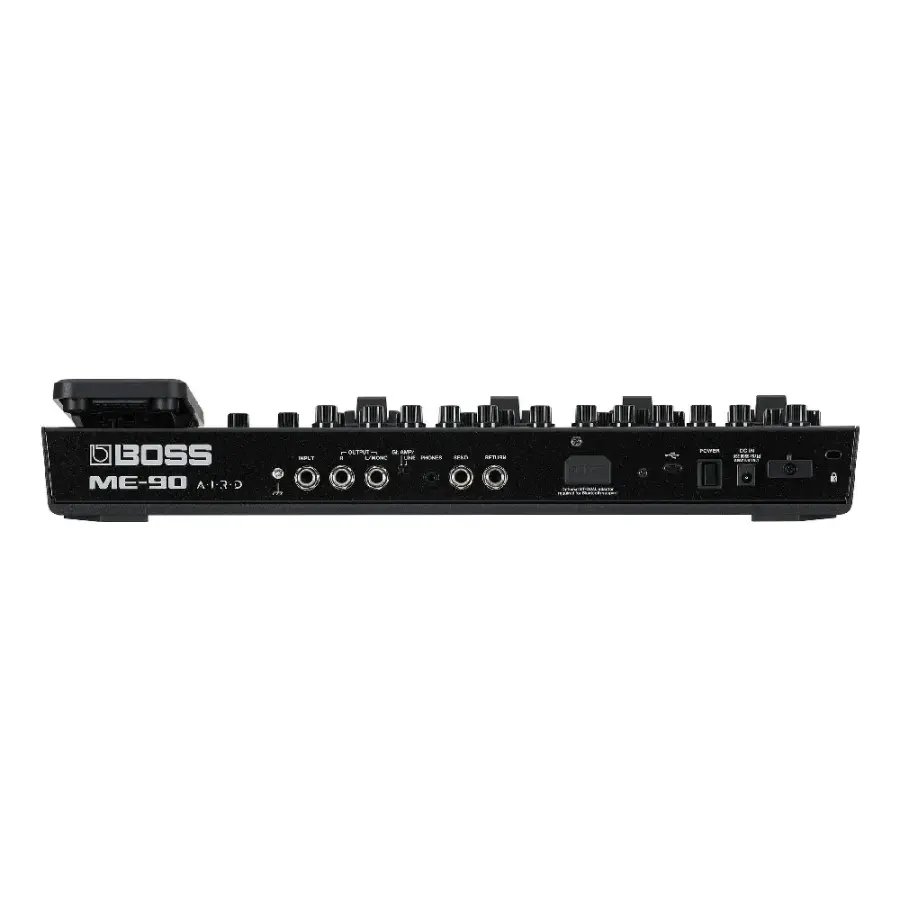

The ME-90 sports eight customizable footswitches for controlling multiple functions and a newly designed expression pedal with a toe switch for easier real-time performance controls. The rear panel features an FX loop for external pedals and a switch for selecting between amp-level or line-level audio output. Two selectable operational modes allow you to set up your ME-90 for pedalboard-style use (Manual mode) or switch between entire patch setups (Memory mode) depending on your usage scenario. This pedal can run on a power adapter (not included) or the included four alkaline AA batteries.
The footswitch LEDs light in different colors for quick identification in the heat of a performance. It's also possible to set all LEDs to light in a fixed color for each mode if desired.
You also get 11 dedicated Pedal FX, a looper, and specialized effects such as acoustic simulation and down tuning. There are 60 effect types in total, with access to over 20 more via BOSS Tone Studio. A send/return loop is available for external pedals, complete with the ability to save the on/off status in patches and place the loop before or after amp models in the signal chain.
You can power the processor with four AA batteries or an optional AC adapter, and a rear-panel switch instantly optimizes the outputs for use with a guitar amp or full-range sound system such as a PA. Along with BOSS Tone Studio communication, the USB-C output allows you to use the ME-90 as a computer audio interface for your go-to music production software.
BOSS ME-90 Specs
General
Maximum Input Level
+7 dBu
Output Level
-10 dBu
Input Impedance
1 Megohm
Output Impedance
L/Mono and R Output: 1 Kilohm
Headphones Output: 44 Ohms
Send Output: 1 Kilohm
Controls
Switches: BANK DOWN/AMP, BANK UP/EQ, CTL/REV, MEMORY/MANUAL, 1/COMP, 2/OD/DS, 3/MOD, 4/DELAY, PEDAL FX, Guitar AMP/LINE,POWER
Buttons: EXIT, WRITE, CTL, EDIT
Knobs: PREAMP TYPE, GAIN, BASS, MIDDLE, TREBLE, LEVEL, REVERB, COMP/FX1 TYPE, SUSTAIN/SENS/-1OCT, ATTACK/TONE/-2OCT/DEPTH, LEVEL/PEAK/DIRECT, OD/DS TYPE, DRIVE, TONE, LEVEL, MOD TYPE, RATE/KEY, DEPTH/HARMONY, E.LEVEL/RESONANCE, DELAY TYPE, TIME, FEEDBACK, E.LEVEL, OUTPUT LEVEL, PEDAL FX TYPE
Pedal: PEDAL FX Pedal
Display
Panel Type
LCD
Touchscreen
No
Inputs / Outputs
USB I/O
1 x USB-C Female Input
Audio I/O
1 x 1/4" TS Hi-Z/Instrument Input
1 x 1/4" TRS Input (FX Return)
2 x 1/4" TS Output (1 Stereo Pair)
1 x 1/4" TRS Output (FX Send)
1 x 1/8" / 3.5 mm TRS Headphone Output
Wireless
Wireless
Bluetooth
*Via Optional Adapter
Mobile App Compatible
No
*As of July, 2023: Check with manufacturer for the most up-to-date compatibility
Power
Power Source
Battery (Included), AC Adapter with Power Brick (Not Included)
Battery Type
4 x AA Alkaline
Operating Current
190 mA
Environmental
Environmental Protection
None
Physical
Color
Black
Material of Construction
Metal, Plastic
Dimensions
17.4 x 8.7 x 2.6" / 44.3 x 22 x 6.7 cm
Weight
6.4 lb / 2.9 kg
Packaging Info
Package Weight
7.865 lb
Box Dimensions (LxWxH)
21.5 x 11.5 x 4.7"
