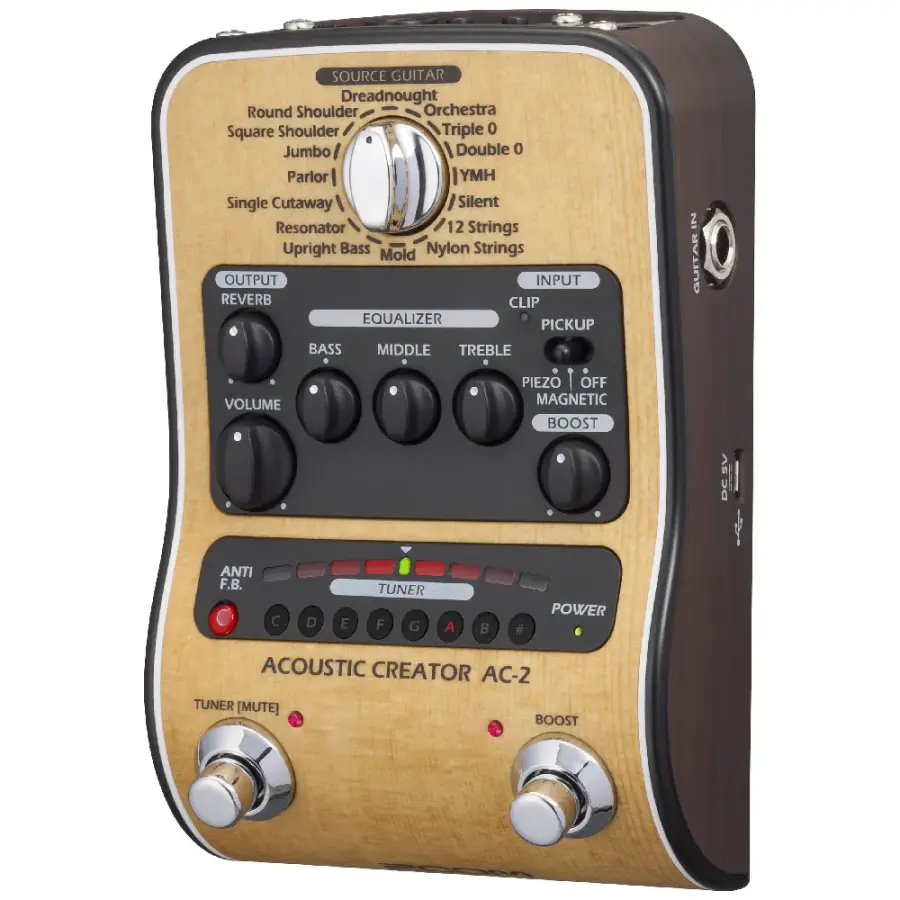

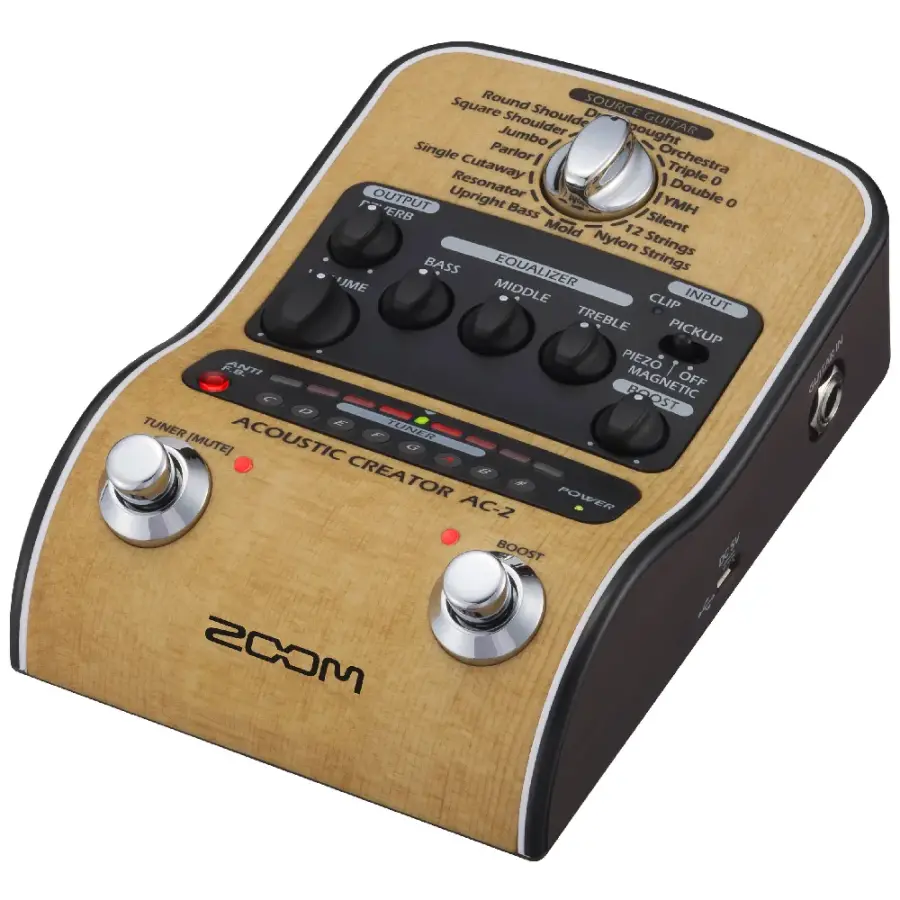

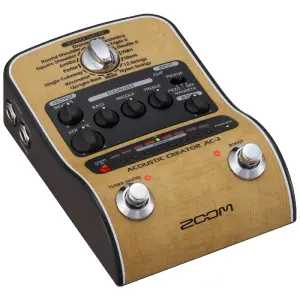

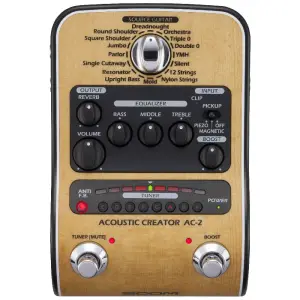

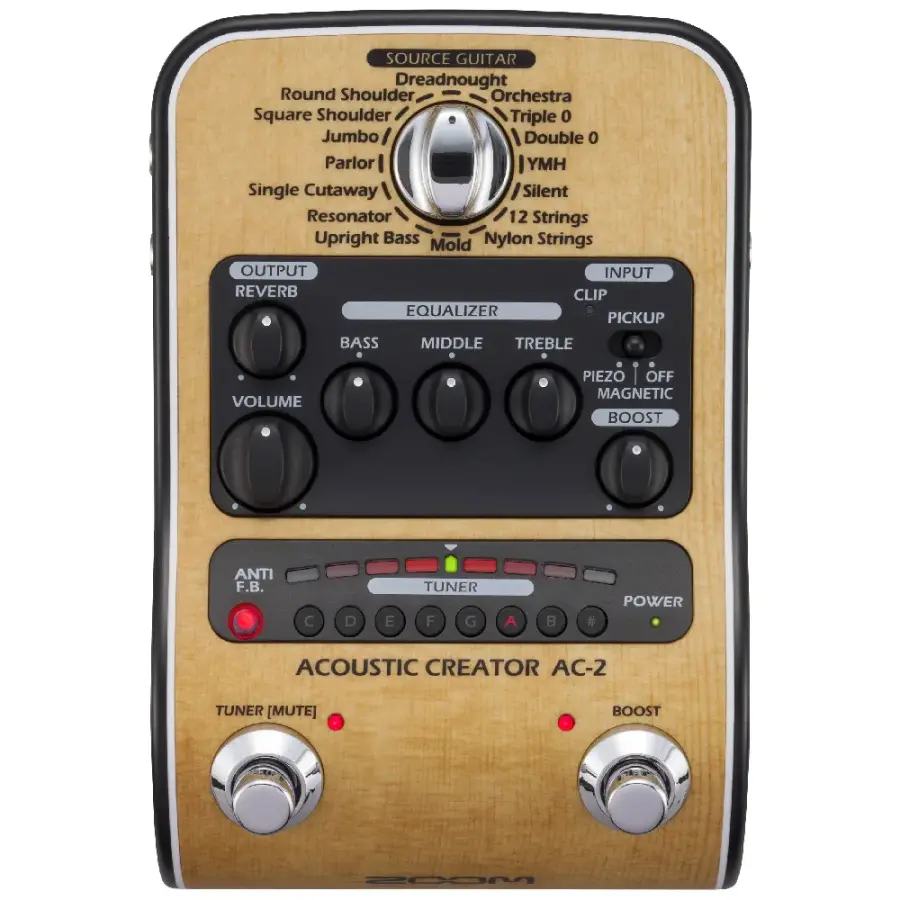

Notify me when its in stockGeared for acoustic guitar players in amplified contexts, the Zoom AC-2 Acoustic Creator is a DI which aims to recreate the natural sound of your guitar, restoring the tone that’s inevitably lost through using conventional acoustic pickups. The pedal features 16 source presets, so whether your axe is a dreadnought or a parlor guitar, this device has the right sonic signature for you. You can even select presets for upright bass, nylon-string guitars, and 12-string instruments.
An onboard toggle lets you choose between magnetic and piezo, thereby tailoring the pedal’s mechanics for each type of system. A three-band equalizer helps you balance the tone of your instrument, while reverb, adjustable volume, anti-feedback control, and a built-in tuner are boons as well. There’s even a boost switch to give you up to 9 dB of gain during lead breaks or solos. Moreover, whichever tone you choose, the high-quality, low-noise preamp will help you achieve a lush and resonant sound. The prominent volume knob controls both input gain and output level, eliminating the guesswork in matching sound levels.

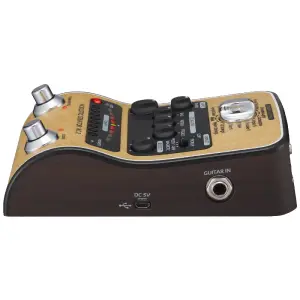

A standard instrument input is provided for connecting to the pedal. For outputs, you can either used the balanced XLR jack, or if stereo sound is required, the dual 1/4” connections will get you to your destination. This routing facilitates use with amplifiers, mixers, interfaces, and even headphones, as one of the 1/4" jacks doubles as a headphone output for monitoring your sound right from the DI. Power is available via the included power supply, through batteries, or over USB.
1/4" input for instruments
XLR balanced output for house PA, mixers, and interfaces
Two 1/4” outputs for mono or stereo connection to guitar amps and headphones
Onboard reverb effects
High-quality, low-noise preamp
Piezo/magnetic input pickup selector
3-band equalizer
Input and output gain/sensitivity adjustable via single volume knob
Anti-feedback control
Boost switch for up to 9 dB of additional gain
Built-in chromatic visual-LED tuner
USB connection for firmware updates
Dual output jacks for connection to guitar amps and mono or stereo PA systems
3 power options: 2 x AA batteries, the included Zoom AD-16 power adapter (9 VDC in), or bus power via micro-USB port
I/O | 1 x 1/4" input, phone type 1 x 1/4" output, phone type 1 x 1/4" output/headphone output, phone type 1 x XLR output, balanced |
Effects | 16 types |
Sampling Frequencies | 44.1 kHz |
A/D and D/A Conversion | 24-bit with 128x oversampling |
Signal Processing | 32-bit |
Frequency Characteristics | 20 Hz to 20 kHz, +1 dB, -3 dB (10-kOhm load) |
Impedance | Input: 10 MOhms XLR output: 100 Ohms (hot-ground, cold-ground), 200 Ohms (hot-cold) 1/4" output, mono: 10 kOhms or higher 1/4" output, headphones: 32 Ohms |
Rated Input | -20 dBu |
Maximum Output Level | Output: Line +7 dBu Phones: 8 mW + 8 mW into 32-Ohm load |
EIN | 120 dBu |
Noise Floor | -100 dBu |
Power | 9 VDC, 500 mA |
Power Supply | Zoom AD-16 power supply, bus power over USB, or 2 x AA batteries |
USB | Micro-USB, type-B |
Dimensions | 6.2 x 4.2 x 2.0" / 15.8 x 10.7 x 5.2 cm |
Weight | 1.3 lb / 570.0 g (not including batteries) |
Package Weight | 1.9 lb |
Box Dimensions (LxWxH) | 9.5 x 7 x 2.9" |
