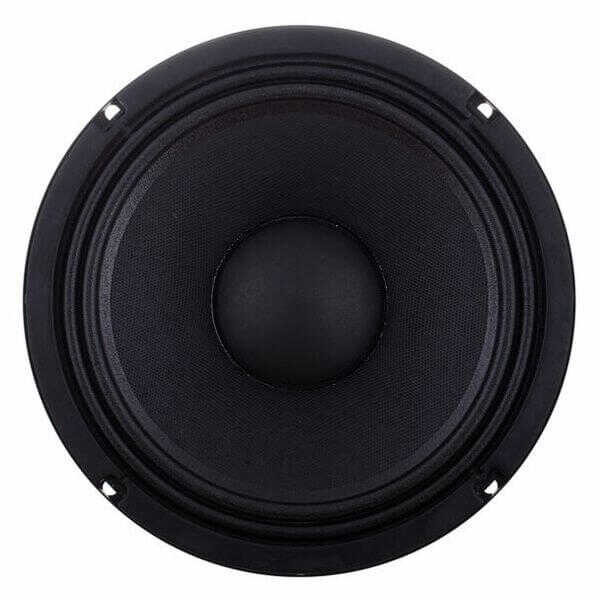

8-inch pressed steel chassis, ferrite magnet mid/bass driver
200W
Continuous power rating
1.75in
Voice coil diameter
Nominal diameter
203mm / 8in
Continuous power rating
200W
Frequency range
70-6000Hz
Chassis type
Pressed steel
Magnet weight
0.88kg / 31oz
Voice coil diameter
44mm / 1.75in
Voice coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Gap height (Hg)
6mm / 0.24in
VC winding height (Hvc)
13mm / 0.51in
Additional impedances
4Ω, 16Ω
Parameters
Mounting Information
Overall diameter
208mm / 8.19in
Overall depth
99mm / 3.5in
Cut-out diameter
183mm / 7.2in
Mounting hole dimensions
9.5x5.5mm / 0.37x0.22in
Number of mounting holes
4
Mounting hole PCD
195-199mm / 7.68-7.83in
Unit weight
2.3kg / 5.1lb
Packed Dimensions & Weight
Single pack size W x D x H
230mm x 230mm x 110mm / 9.1in x 9.1in x 4.3in
Single pack weight
2.8kg / 6.2lb
Multi pack size W x D x H
42.1in x 33.5in x 33.9in
Multi pack weight
350kg / 770lb
Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous Power Rating is defined as 3dB greater than the AES rating.
Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.
Xmax is derived from: (voice coil winding width-gap depth)/2.
Small Signal Parameters are measured after unit subjected to pre-conditioning signal.
