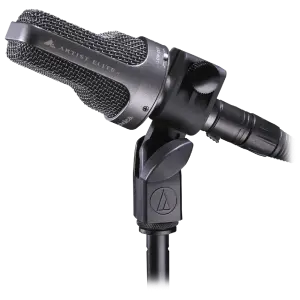

The AE3000 Cardioid Condenser Instrument Microphone from Audio-Technica is a large-diaphragm side-address microphone designed for capturing instruments rich in transient response. Guitar cabinets, drums, and percussion signals are accurately reproduced without noise and distortion. The capsule features a cardioid polar pattern which effectively minimizes noise at the off-axis sections of the capsule, providing high gain-before-feedback response and minimal ambient noise. A high-pass filter switch eliminates noise below 80 Hz and a -10 dB pad increases headroom when capturing signals at close proximity or at high levels. The microphone is powered by an external 11 to 52V phantom power source.
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | -43 dB (7.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal) |
| Noise | 11 dB SPL |
| Dynamic Range | 137 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 83 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 3 mA typical |
| Switches | High-pass filter; 10 dB pad (nominal) |
| Weight | 6.0 oz (170 g) |
| Dimensions | 4.55" (115.5 mm) long, 1.89" (48.0 mm) maximum diameter |
| Output Connector | Integral 3-pin XLRM-type |
