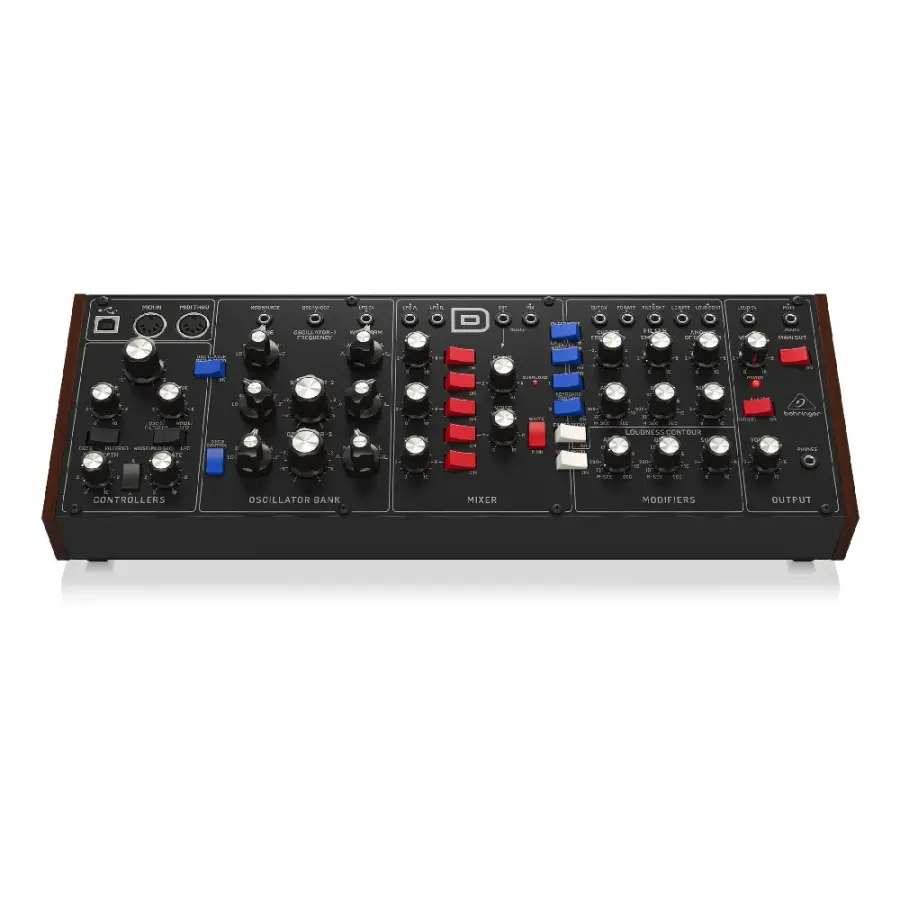

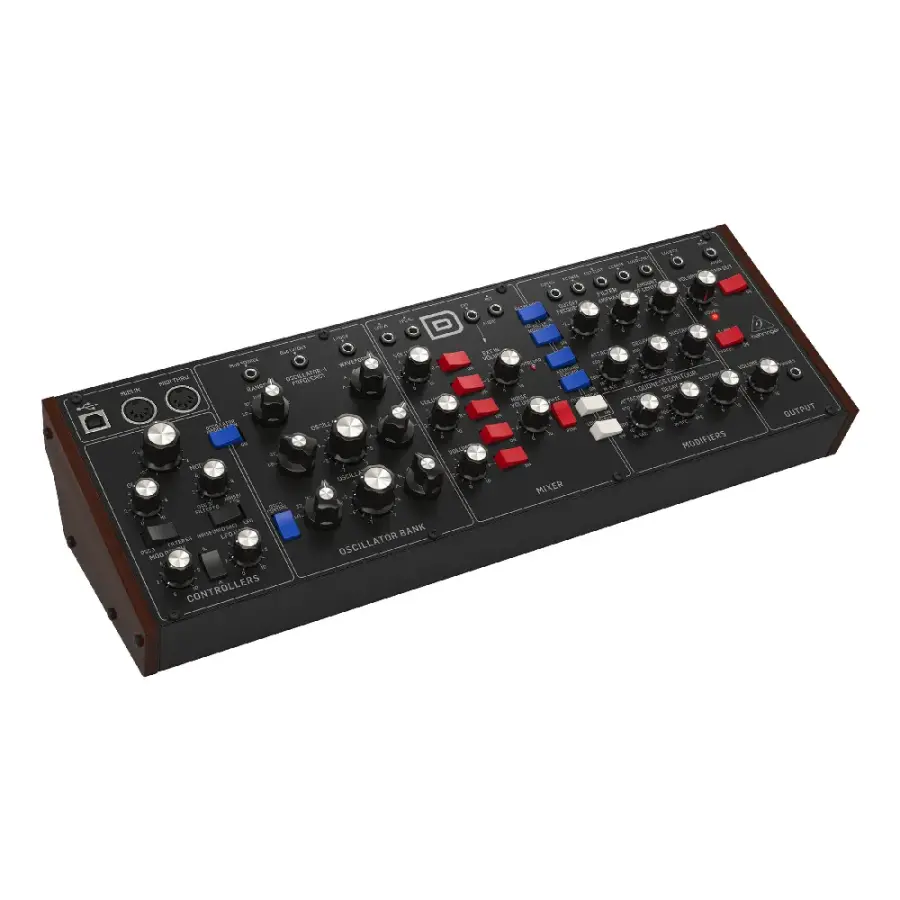

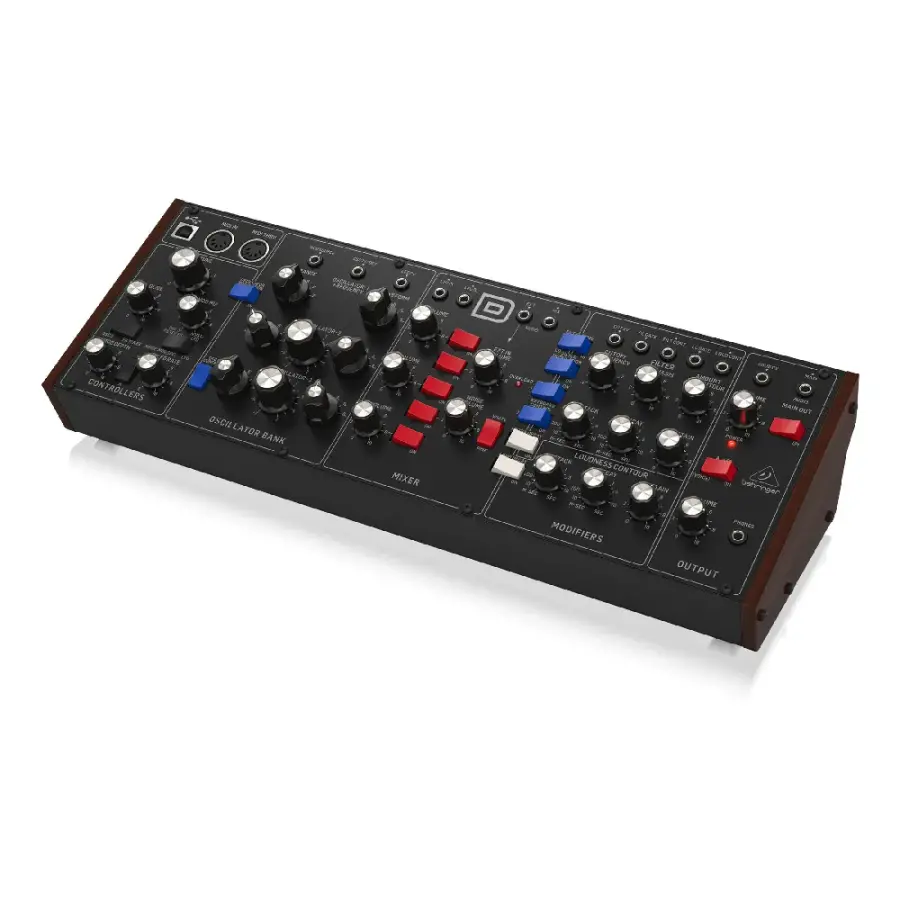

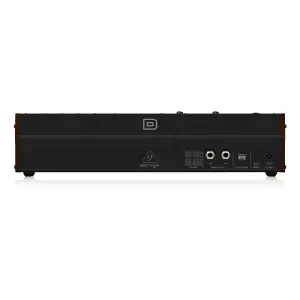

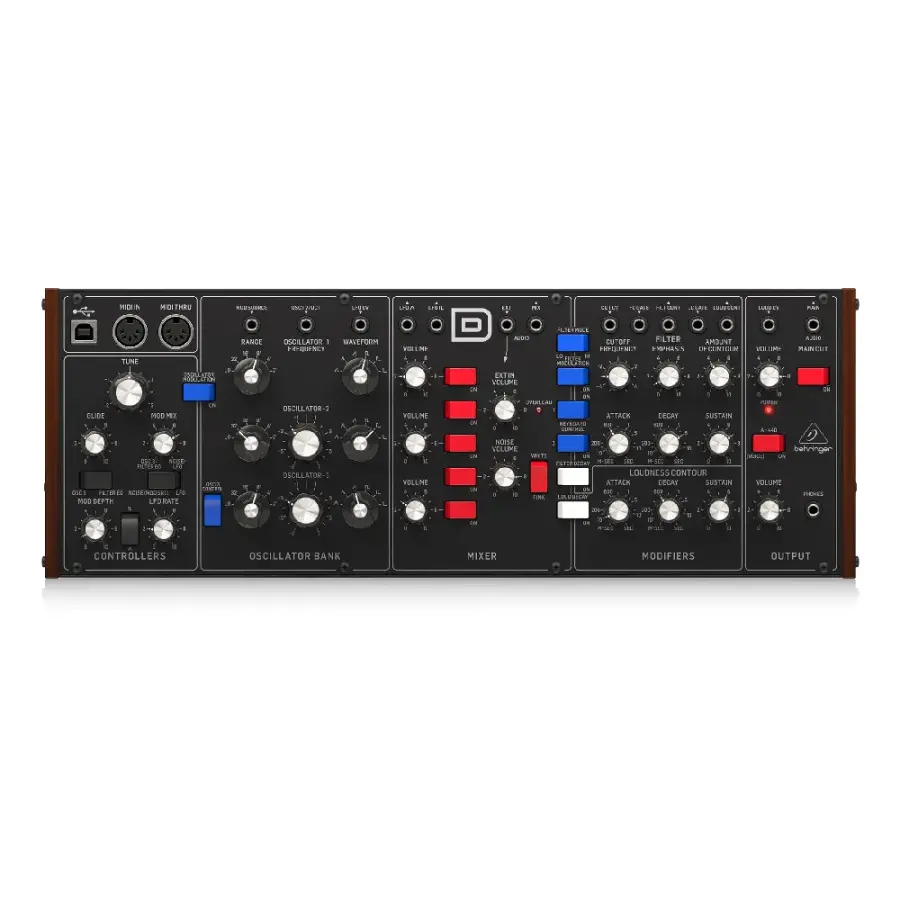

Behringer Model D Analog Synthesizer

Product information - Behringer Model D

Monophonic analogue synthesizer

The Behringer Model D is a monophonic analogue synthesizer in desktop design. For the authentic replication of the legendary Minimoog Model D sound, "D-typical" JFETs and identical transistors , resistors and capacitors were used. A completely analogue signal path for VCO, VCF and VCA , as well as the classic 24dB cascade filter allow incredibly assertive and distinctive sounds. Furthermore the Model D offers additional features such as a filter characteristic switchable between low/high pass and a semi-modular design , which makes the Behringer Model D a complete synth voice perfectly integrated into modular Eurorack synthesizers.

Detailed Minimoog Model D replication

The authentic sound was achieved by replicating all sound shaping instances in detail:

• Three oscillators with five waveforms with pulse width modulation
• Noise generator to generate further waveforms
• Completely analogue signal path of VCO, VCF and VCA
• Assignable, fully analogue LFO with square/triangle waveform
• Overdrive circuit (Overload)
• Classic 24dB cascade filter with resonance

Additional features

• Selectable filter characteristics between low/high pass for an extended sound spectrum
• Semi-modular (internally pre-wired) signal flow for straightforward playing without additional cabling
• For modular system applications, the internal pre-wiring can be "broken" by patching cables and used for modulation
• Use as full synthesizer voice in the Eurorack modular system with 14 patch points
• Extensive MIDI implementation

The Behringer Model D at a glance:

• Legendary analogue synthesizer with triple VCO design for incredibly fat sounds
• Authentic reproduction of the original Model D with tuned transistors and JFETs
• Pure analogue signal path of VCO, VCF and VCA
• Five waveforms with pulse width modulation for ultimate sounds
• Classic 24dB cascade filter with resonance
• Switchable low/high-pass filter for advanced sound design
• Analogue LFO with square/triangular waveform
• Semi-modular design for immediate play without cabling
• Overdrive circuit gives that extra something for distinctive and assertive sounds
• Noise generator for advanced waveform generation
• 16-voice Poly Chain allows cascading of several synthesizers for a polyphony of up to 16 voices
• Complete Eurorack voice - The sound generator can be built into a Eurorack housing
• 49 control elements for direct access to all important parameters
• External audio inputs for editing external sound sources
• Low and high output level outputs for best possible integration of the audio signal
• Extensive MIDI functions

Features:

• Manufacturer: Behringer
• Construction / Number of Keys: Desktop without keyboard
• Sound Generation: Analog
• Polyphony: 1
• Number of Knobs: 29
• Number of Keys: 19
• MIDI Interface: Yes
• USB MIDI Interface: Yes
• LINE IN: Yes
• LINE OUT: Yes
• Headphone Connection: Yes
• Sustain Pedal Connection: Yes
• Power Supply: Adapter, external
• incl. Power Adapter: Yes
• Weight (kg): 1.7

Tech Specs

• Type:Desktop Synthesizer
• Analog/Digital:Analog
• Polyphony:Mono
• Oscillators:3 x VCO
• Waveforms:Triangle, Sawtooth, Tri-sawtooth, Square, Wide Pulse, Narrow Pulse, Reverse Sawtooth (osc 3)
• Noise Generator:White, Pink
• Envelope Generator:2 x EG (attack, decay, sustain)
• LFO:Triangle, Square wave
• Filter:24dB Ladder Filter, low-pass/high-pass
• Effects Types:Overdrive circuit
• Analog Inputs:1 x 1/8" (external audio)
• Analog Outputs:2 x 1/4" (main out low, high), 1 x 1/8" (main out), 1 x 1/8" (mix audio out), 1 x 1/8" (headphones)
• MIDI I/O:In/Thru/USB
• Other I/O:Mod Source, OSC 1V/OCT, LFO CV, LFO square, LFO sawtooth, Cut CV, FC Gate, Filter, LC Gate, Loud contour, Loud CV
• USB:1 x Type B
• Power Supply:12V DC power supply (included)
• HP Size:70HP
• Height:3.5"
• Width:14.7"
• Depth:5.4"
• Manufacturer Part Number:000-CQJ02-00010
