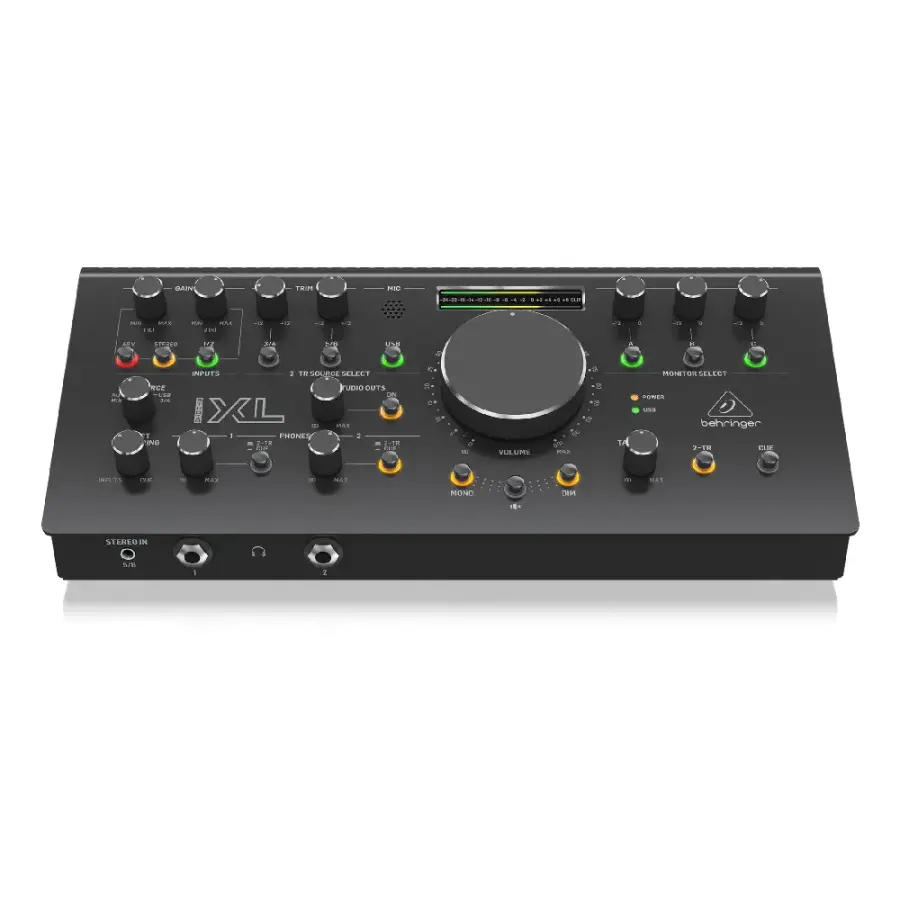

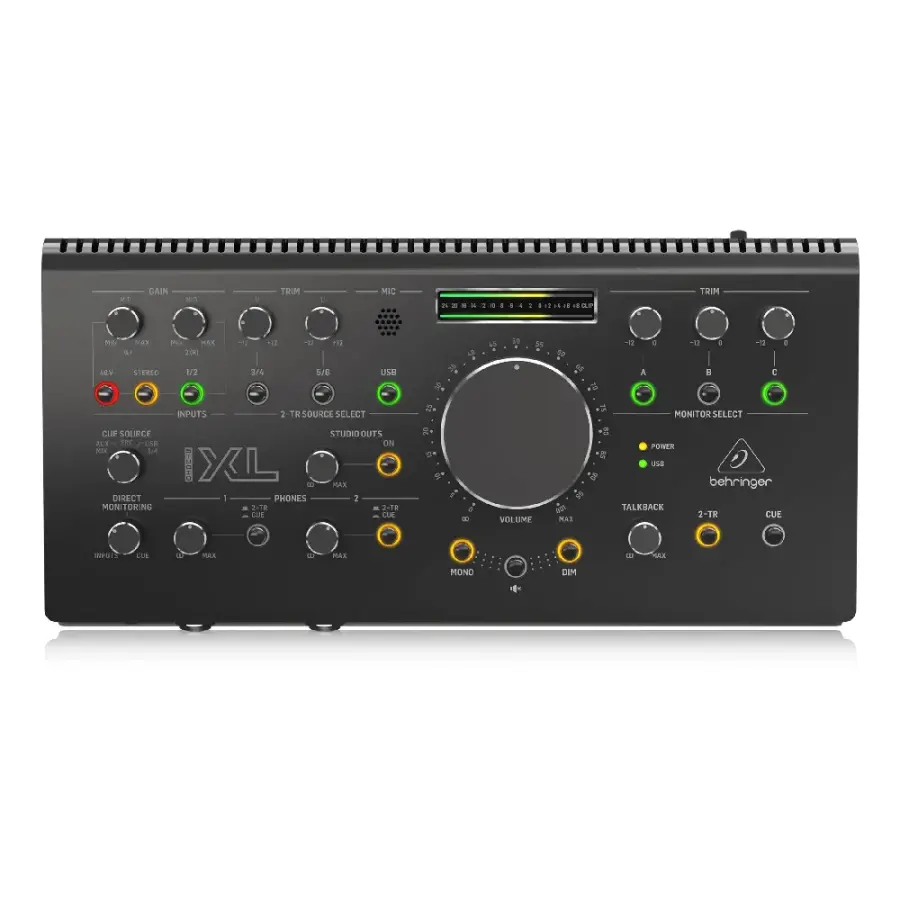

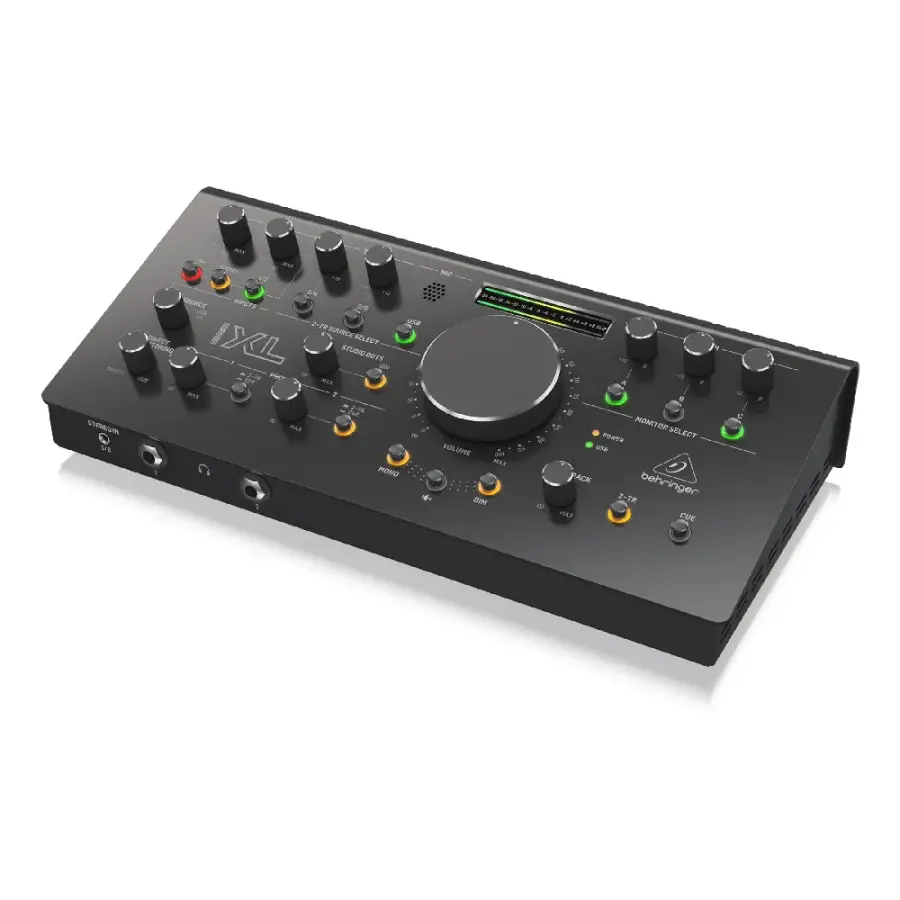

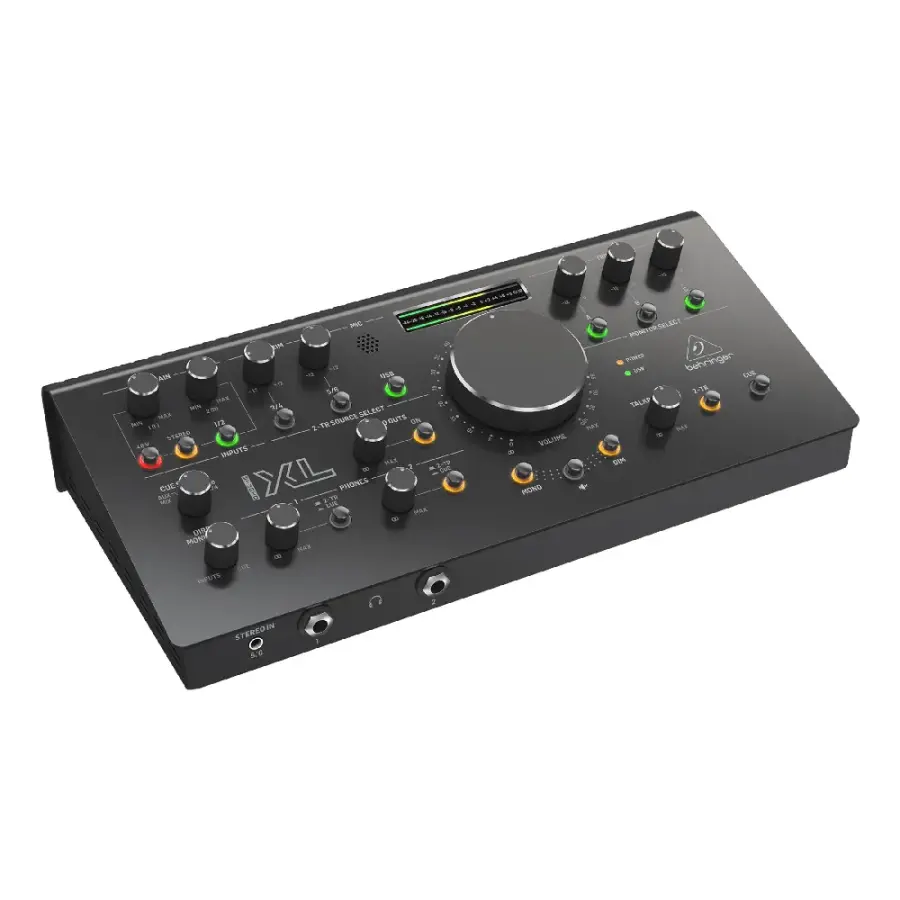

Behringer Studio XL Monitor Controller

The Studio Controller that Does it All

The Behringer Studio XL is much more than a monitor controller — think of it as your ultimate studio command center. This high-quality controller is perfect for not only clear and accurate volume control, but also for source selecting, monitor switching, and easy studio communication. Equipped with two +48V phantom powered Midas microphone preamps and a low-hum, 192kHz 2x4 USB interface, the Studio XL is great for supplying crystal-clear vocals in computer-based studios. The extra-large volume control knob is armed with VCA technology, and it's powered through a separate, volume-specific high-precision amp circuit that provides incredible stereo coherency that won't degrade over time. When it comes to monitoring options, the possibilities are endless. The Studio XL lets you switch between three studio monitors with individual level adjustments so you can test the quality of your recordings from multiple locations, through multiple lenses. You'll also get two line/mic jacks, 2-track and Studio/Phones Amp outputs, and the option to connect a 2-track digital recorder, soundcard, mixer, and more. The Studio XL even features a talkback function via the built-in microphone, allowing you to communicate easily with musicians elsewhere in the studio.

Crystal-clear Midas microphone preamps

Behringer outfitted the Studio XL with two Midas microphone preamps. These dual Midas +48V preamplifiers are state-of-the-art workhorses that feature phantom power, ultra-low noise, high gain, and audiophile quality. Studio XL is a superior choice, offering versatility no matter if you're working with a home studio, a professional studio, or with a small component of an even larger setup. And the quality continues into the built-in USB interface with a 192kHz sampling rate and 24-bit resolution for stunning crispness. Additionally, this low-latency interface provides hum-free operation at up to 8dB less noise than competing products.

Precise VCA-powered output sound to multiple monitors

The jumbo volume knob does a lot more than look — it's actually VCA (Voltage Controlled Amplifier) powered, offering a separate high-precision amplifier circuit to adjust your volume. The result is premium stereo and phase coherency, precise level adjustment, and accurate sound that will remain free of quality degradation over time. You can even use the dimmer knob to momentarily adjust your monitors' volume output without having to adjust your precise setting on the large dial.

You can also put that premium sound quality to work through any one of the Studio XL's three monitor outputs, each with individual level adjustments. These are perfect for use with a Behringer B2031A, a MS16, a Tannoy Gold 5, or any other preferable monitor combination.

Compatibility, connections, and communication made easy

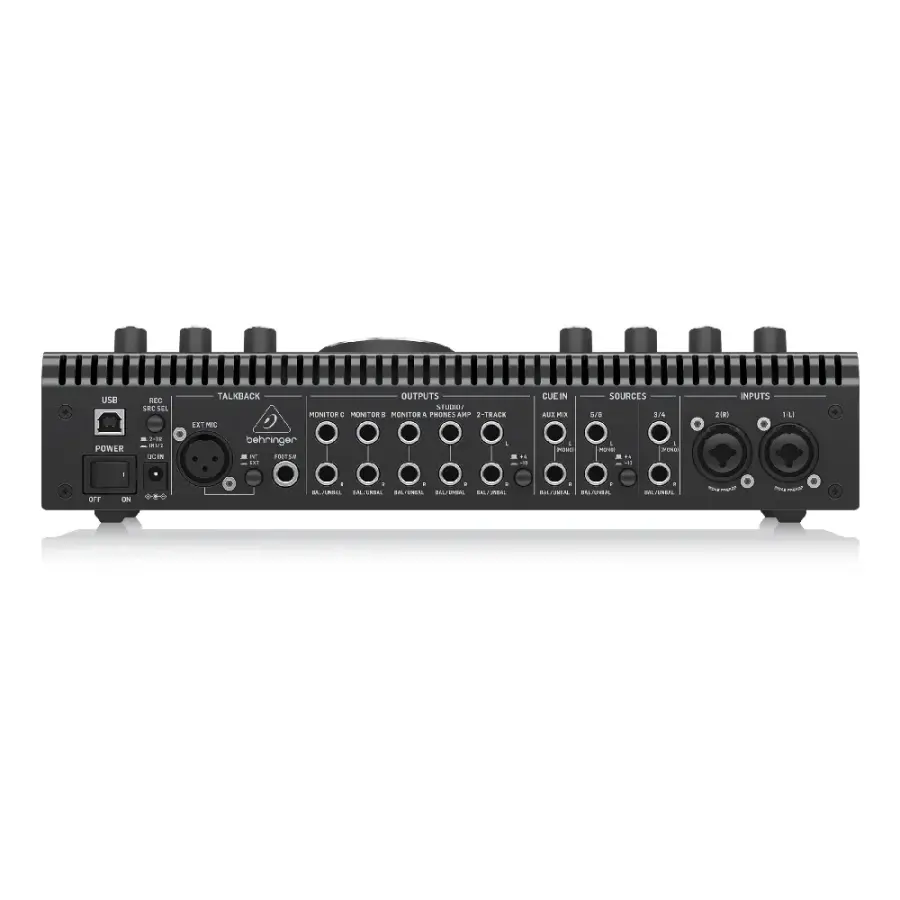

The Studio XL is super compatible, offering an array of different input connection options. On the front side, you'll find a 1/8-inch stereo input for connecting smartphones and music players, as well as two headphone jacks to play back recordings with a guest. The backside of this Behringer is a "Grand Central Station" of sorts, providing three pairs of input connectors and an additional Aux Mix stereo input. Included in this setup are two line/XLR inputs that can be used in any combination, while offering dual-mono and stereo-link mode operation. Down the row, you'll find the 2-track and Stereo Phones Amp outputs, perfect for connecting a two track digital recorder, an extra soundcard, or a headphones distribution amplifier. Finally, the Studio XL boasts an impressive talkback mic feature. The built-in microphone and Mic Exit make communication with artists in the booth a seamless process — and it can even be operated via footswitch!

Behringer Studio XL Monitor Controller Features:

• 2 Midas +48V phantom-powered microphone preamps offer low noise, high gain, and audiophile quality
• 192kHz 2x4-inch USB audio interface, perfect for computer-based studios
• True VCA control for extremely precise level control and stereo tracking
• 6 inputs with level controls plus additional aux mix input and USB monitoring from your DAW
• 3 independent and adjustable monitor outputs to connect up to 3 sets of studio monitors
• Versatile talkback options with built-in mic and external microphone input with footswitch and level control
• Convenient mono, mute, and dim functions right at your fingertips
• 2 powerful headphone amplifiers with separate volume controls and source select switches
• Zero-latency direct monitoring with controlled blending between direct inputs and cue mix sources
• Quick-access aux input to connect your smartphone and music player for reference tracks
• High-precision dual LED meters for perfect level overview

Tech Specs

• Type:Monitor Controller
• Input Channels:6
• Output Channels:5 x stereo monitors
• Analog Inputs:2 x XLR-1/4" combo (mic/line), 4 x 1/4" (2 x stereo), 1 x 1/8" (stereo)
• Analog Outputs:10 x 1/4" (5 x stereo)
• Headphones:2 x 1/4" TRS (stereo)
• USB:1 x Type B
• Computer Connectivity:USB
• Other I/O:1 x XLR (external mic), 1 x 1/4" (footswitch), 2 x 1/4" (aux mix)
• Talkback:Yes
• A/D Resolution:Up to 24-bit/192kHz
• Form Factor:Desktop
• Power Supply:12V DC power supply (included)
• Height:3.15"
• Width:12.91"
• Depth:6.42"
• Weight:3.97 lbs.
• Manufacturer Part Number:000-E8602-00010
