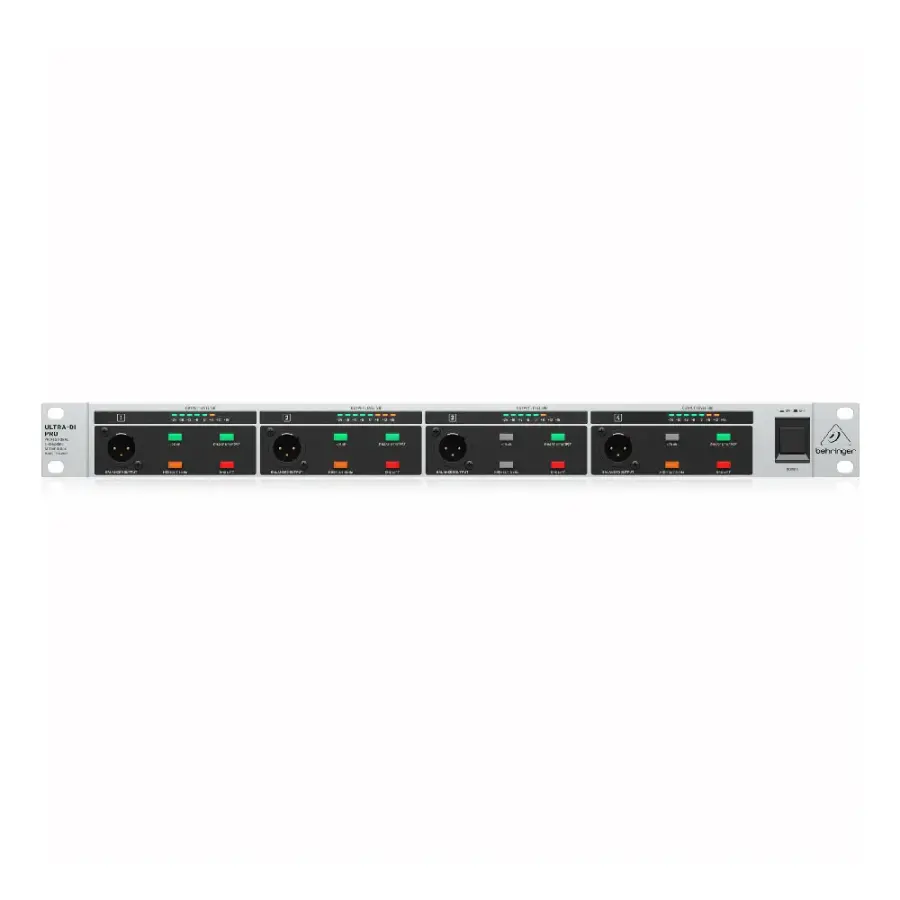

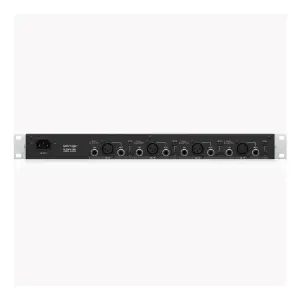

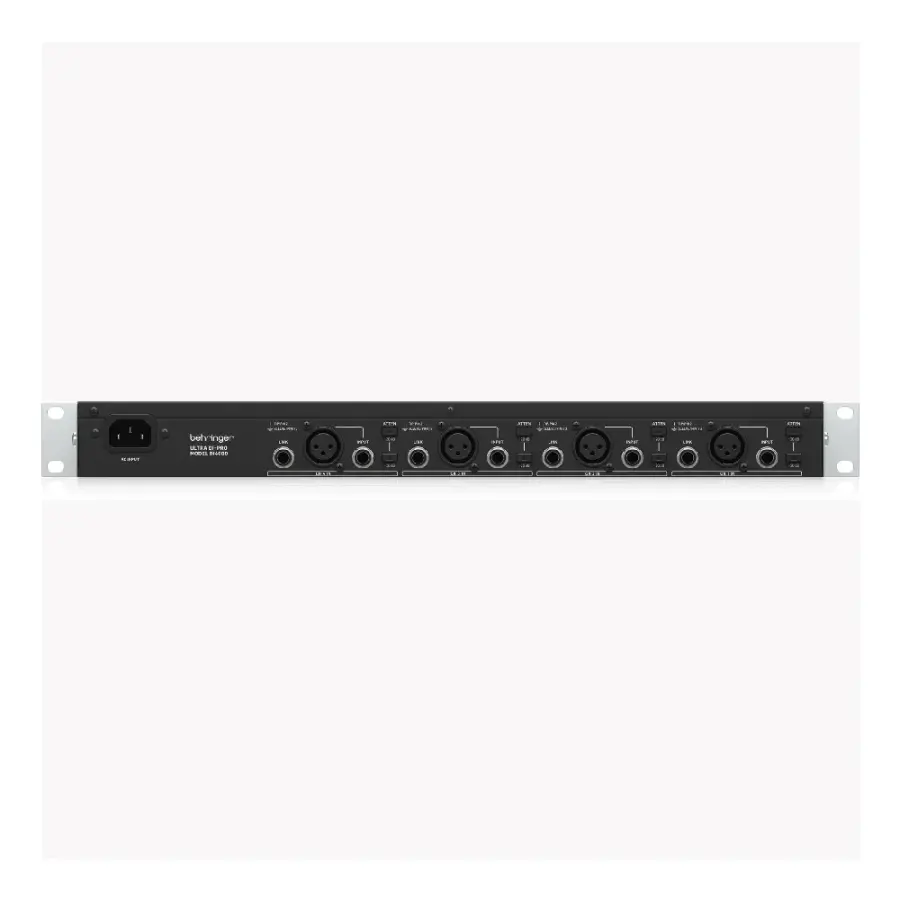

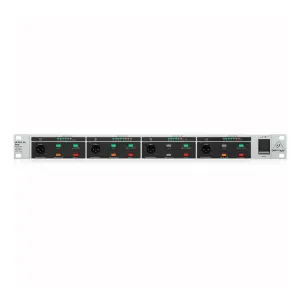

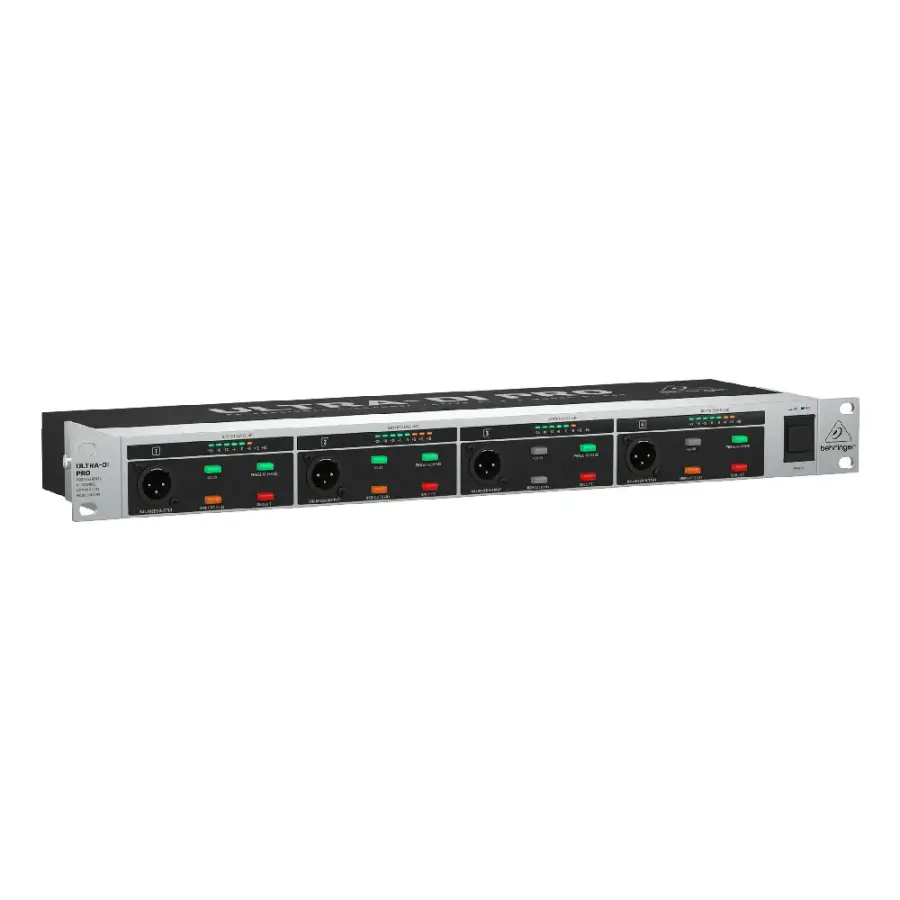

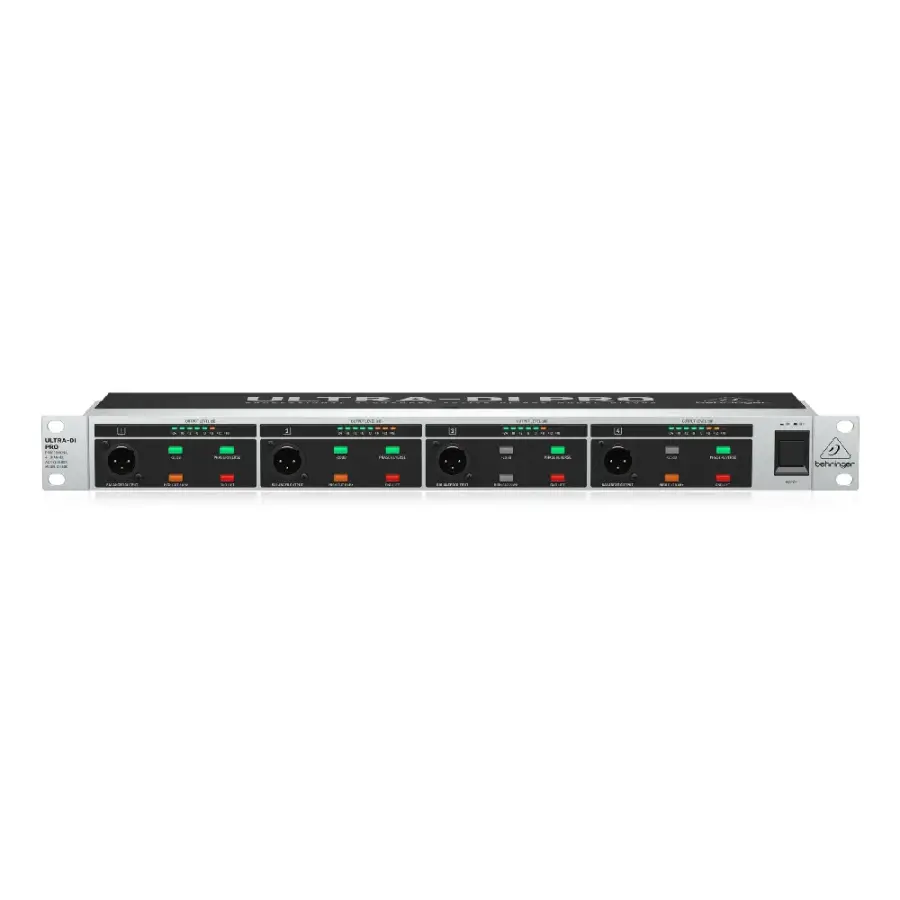

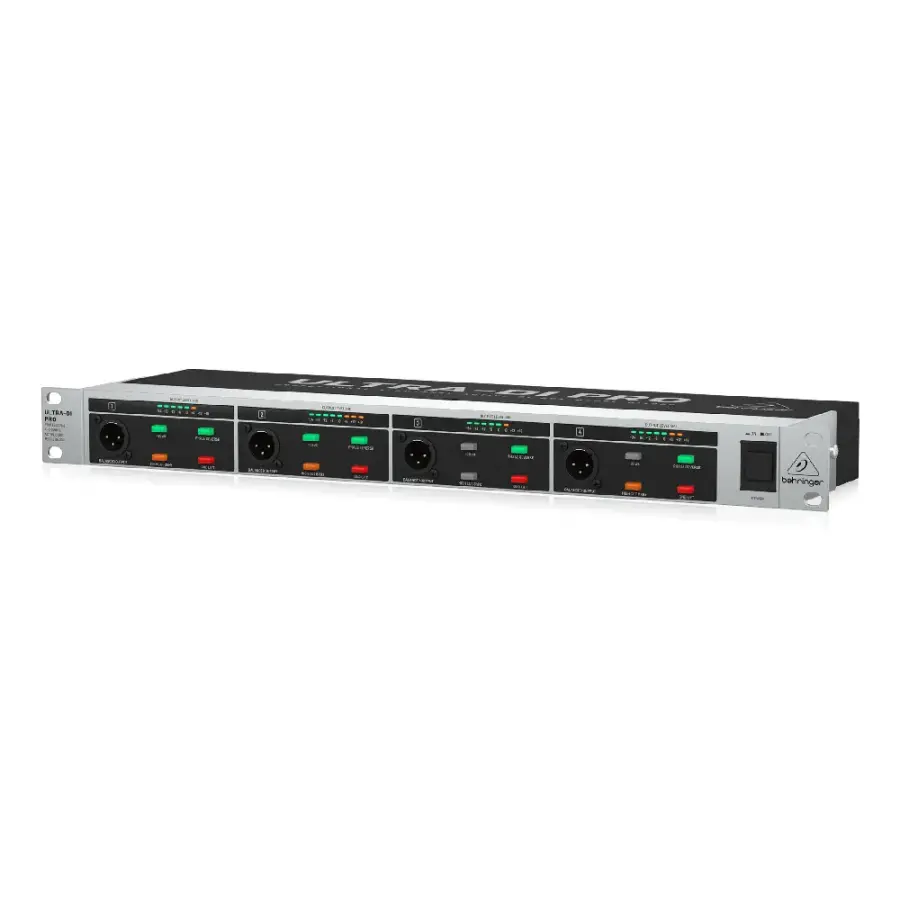

Behringer DI4000 V2 4-channel Active Direct Box

The Behringer DI4000 V2 Professional 4-Channel Active DI-Box features four premium-quality DI channels compacted into a single, handy rack space. Each input comes equipped with an XLR and 1/4" TRS input, a balanced XLR output as well as a 1/4" link output. This allows easy connection to your amp or monitor console.

Get the signal level that's right for you - all thanks to the inclusion of up to 40dB of switchable input attenuation and up to 20dB of gain. Whether you want to reduce the volume of a hot input to avoid clipping, or need a boost the level for a delicate part; Behringer have you covered. Ensure fantastic quality recordings thanks to the inclusion of their highly acclaimed OT-1 output transformers. The DI4000 V2 is the ideal choice for any live or studio application.

Full Description

Professional results

Direct Injection boxes make it possible for you to connect line-level devices such as guitars, basses and keyboards to your audio mixer and recorders. Behringer have taken the DI box to the next level with the DI4000 V2. Each channel features a special 8kHz high-guitar filter, ideal for removing unwanted high-frequency content to enhance your recordings.

If you're tracking with an amplifier simultaneously then the phase reverse switch is excellent for ensuring your recordings are phase coherent at the source. Additionally, the DI4000 active DI features “buffered” inputs that convert your source signal with greater accuracy than passive DI boxes are able to. Thanks to this you're guaranteed an optimally balanced signal with extremely low-impedance, making it less susceptible to noise and RF interference.

Boost and attenuation

The DI4000 features two -20 dB attenuation switches per channel. This is ideal when connecting to speaker outputs rated up to 3,000 watts, converting them to balanced XLR outs. If you're recording a weak signal or delicate part fear not. The DI4000 has a +20 dB switch which is extremely handy when boosting low-level inputs, providing them with the intended impact you desire.

Versatile voltages and easy connections

If you're worried about fluctuating voltages in different venues the DI4000 V2 is equipped with an internal switch-mode power supply. This ranges from 100 to 240V and automatically adapts to suit the main voltage of each venue.

The DI4000 v2 provides a Link output for easy connection to other equipment, such as your onstage amplifiers and monitor consoles. Servo-balanced performance guarantees ultra-flat frequency response – and the gold-plated XLR output connectors provide reliable, low-noise operation. Per channel ground-lift switches eliminate ground-loop hum issues.

Features

• Professional and multi-purpose 4-channel direct injection box for stage and studio applications
• Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
• Ultra-flat frequency response due to renowned Behringer OT-1 transformers
• Allows direct connection to speaker outputs with up to 3,000 Watts
• +20 dB gain switch for pre-amplification of low-level signals
• Switchable input attenuation allows input levels of up to +40 dB
• Phase Reverse switch allows you to instantly correct phase problems
• Switchable High-cut filter (8 kHz) for guitar applications
• Ground Lift switch eliminates typical ground loop problems
• Accurate 8-segment LED level meter for optimum performance
• 1/4" TRS and gold-plated XLR connectors
• Illuminated switches enable perfect operation in dark stage environments
• Internal switch-mode power supply (100- 240 V ) for noise-free audio and low power consumption
• 3-Year Warranty Program*
• Designed and engineered in Germany

Specifications

• Audio Inputs:
• Connectors: XLR and 1/4" TS
• Type: DC-decoupled, unbalanced input
• Impedance: 240 kΩ (pad out)
• Max. input level: +20/+40/+60 dBu @ 1 kHz
• Audio Outputs:
  • Connectors: XLR
  • Type: Transformer-balanced output stage
  • Impedance: 120 Ω
  • Max. output level: +20 dBu
• System Specifications:
  • Bandwidth (100 kΩ load): 23 Hz to 60 kHz (±3 dB)
  • Bandwidth (600 Ω load:) 23 Hz to 40 kHz (±3 dB)
  • Bandwidth (high cut): 23 Hz to 8 kHz (-3 dB)
  • Noise: -90 dBu, 22 Hz -22 kHz
• Power Supply:
  • Switch-mode autorange power supply: 100-240 V 50/60 Hz
  • Power consumption: 10 W
  • Mains connection: Standard IEC connector
• Physical:
  • Dimensions (H x W x D) 44 x 483 x 136 mm (1.7 x 19 x 5.4")
  • Weight 2.1 kg (4.6 lbs)
• Product Code: DI4000 V2
