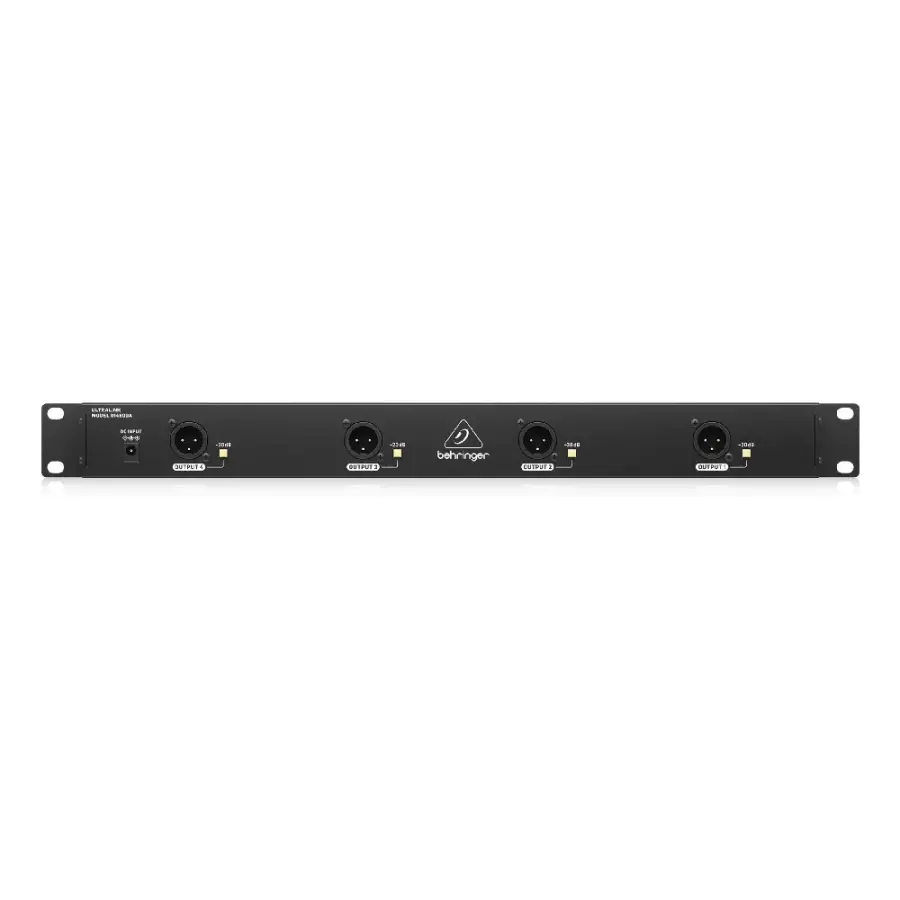

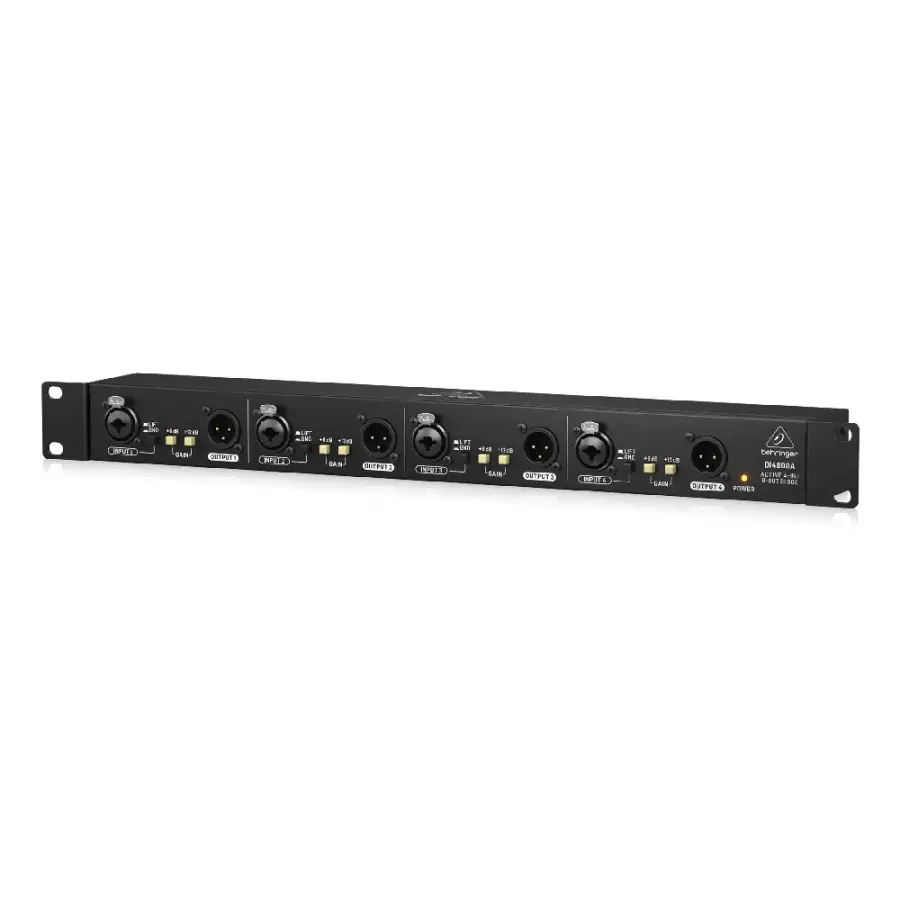

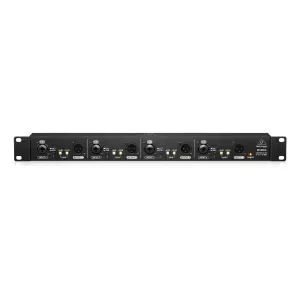

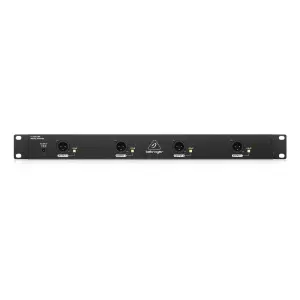

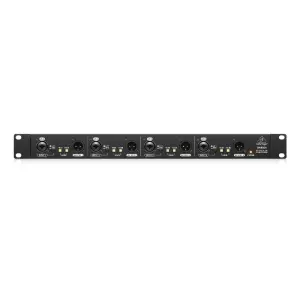

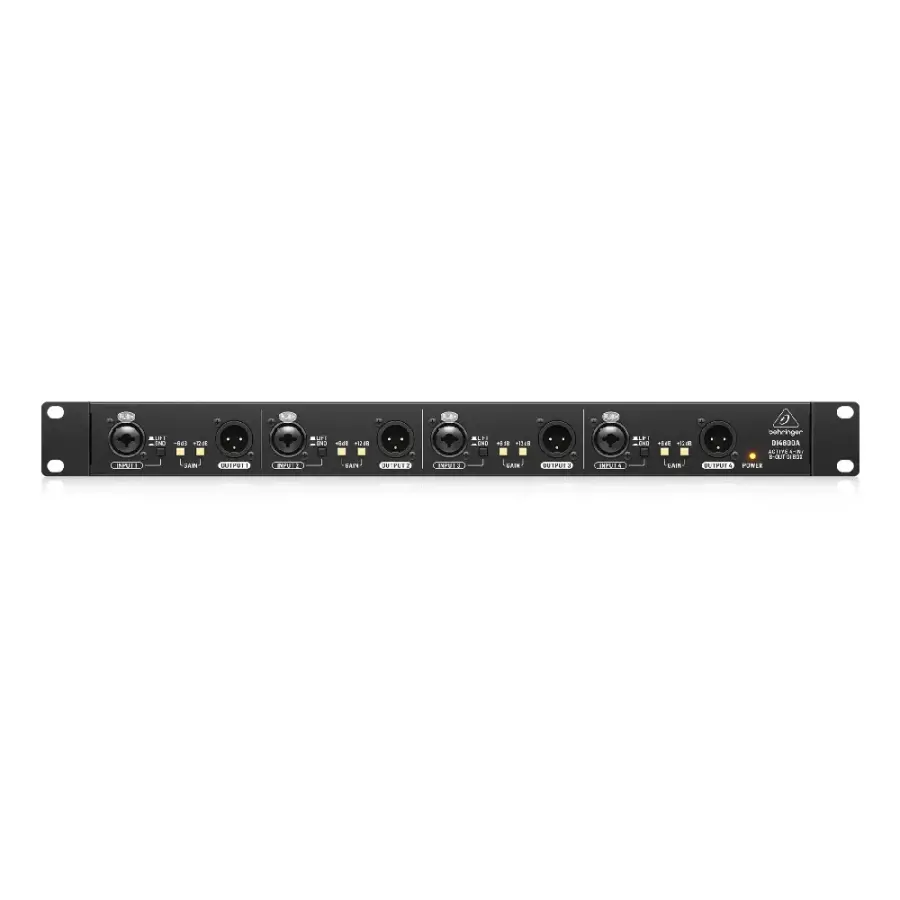

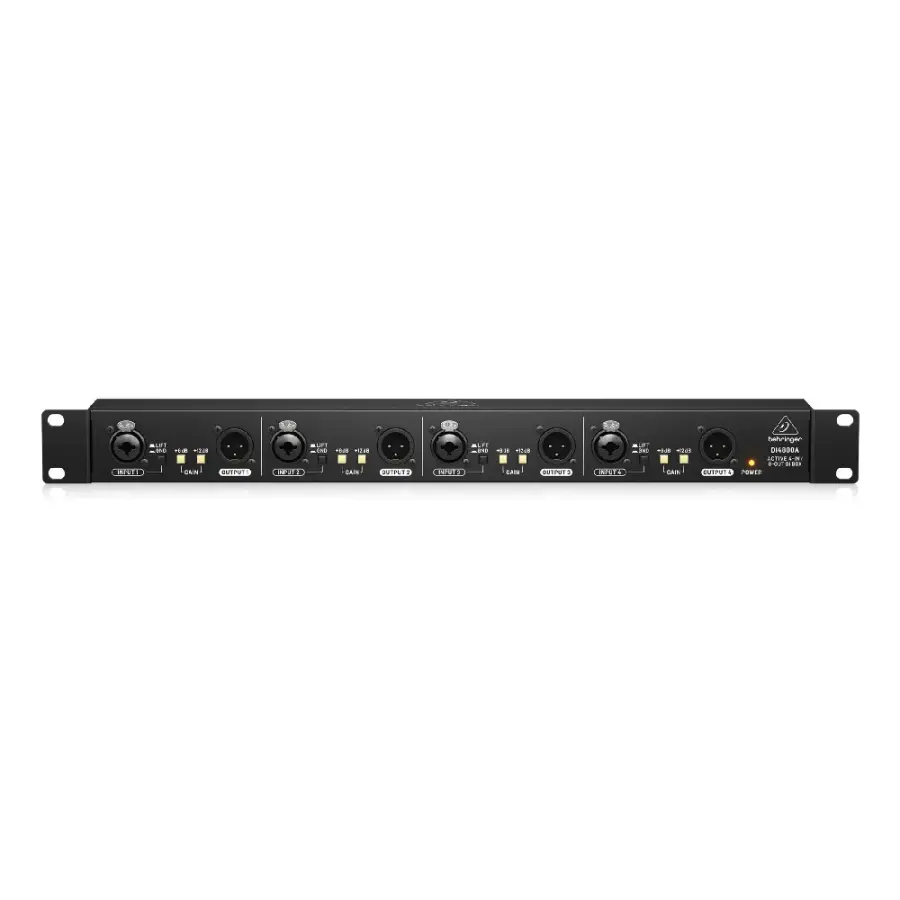

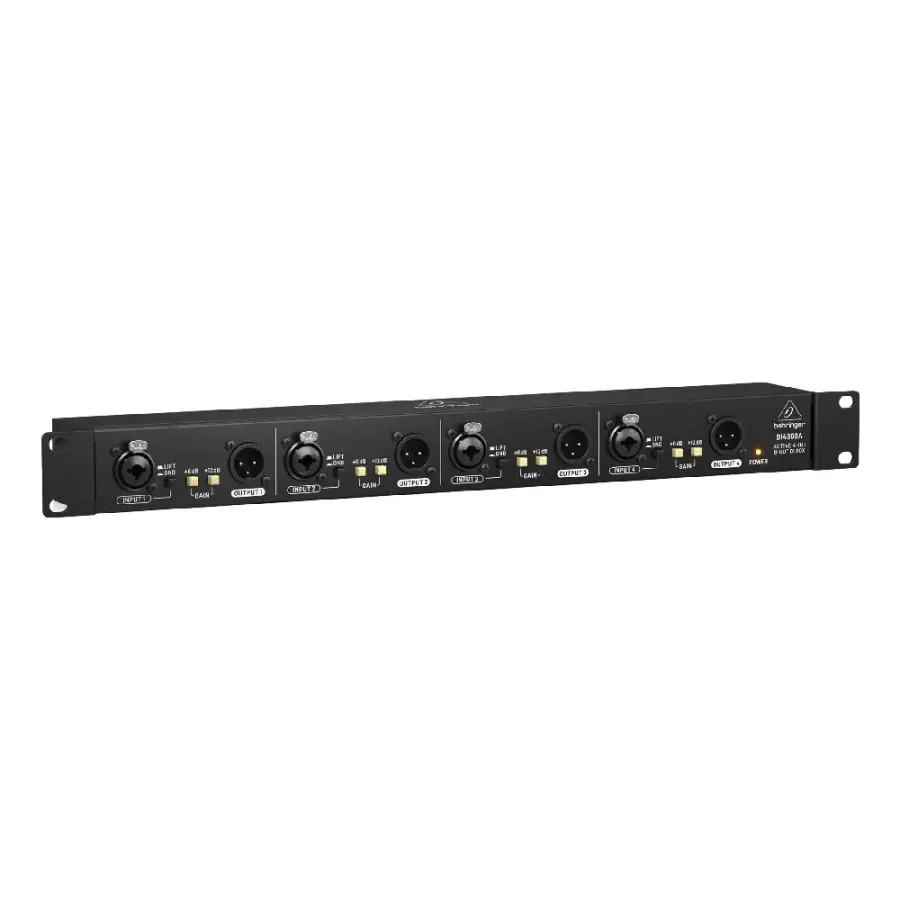

The Behringer DI4800A 4-Channel Active DI-Box, Booster, and Line Isolator makes it easy to connect your instruments to your mixers and amplifiers. With four first-class DI channels on board, you'll get flawless signal with zero distortion or dropouts. All from a unit that fits neatly in your rack unit.
The DI4800A offers powerful signal control - all at the touch of a button. Whether you've got low or high output instruments, you'll get faithful audio reproduction courtesy of attenuation and boost controls. All you have to do is bring your talent.
Full Description
Features
- Multi-purpose DI box perfect for stage and studio use
- Connect instruments to mixers and amplifiers with impedance and signal matching
- Accurate sound from an ultra-flat frequency response
- Get the best sound from low output signals with a total of +18dB gain boost in three pre-amplification increments
- Eliminate ground loop noise with the dedicated lift switch
- Tame high output signals with switchable -20dB attenuation
- Pristine signal connection courtesy of Neutrik combo and gold-plated XLR connectors
- Comes equipped with external DC power supply
- Easily mount in any standard 19” equipment rack
Specifications
Inputs
- Connectors: 4 x XLR-1/4" combo jacks, balanced
- Impedance: 20 kohms
- Max input level: +20 dBu
- Channel boost switchable: +6 dB,+12 dB,+18 dB
Outputs
- Connectors: 8 x XLR, transformer balanced
- Impedance: 600 ohms
- Max output level: +20 dBu
- Output pad switch: 20 dB attenuation
System
- Frequency response: 20 Hz to 20 kHz (±3 dB)
- THD + N (distortion): 0.01 @ 1 kHz, 0 dBu
- Signal-to-noise ratio: 120 dB
- Ground lift switch: Removes ground connection
- Power requirement: 12 V DC, 500 mA
Physical
- Standard operating temperature range: 5° C – 40° C (41° F – 104° F)
- Dimensions (W x D x H): 483 x 71 x 44 mm (19.0" x 2.8" x 1.7")
- Weight: 1.4 kg (3.1 lbs)
