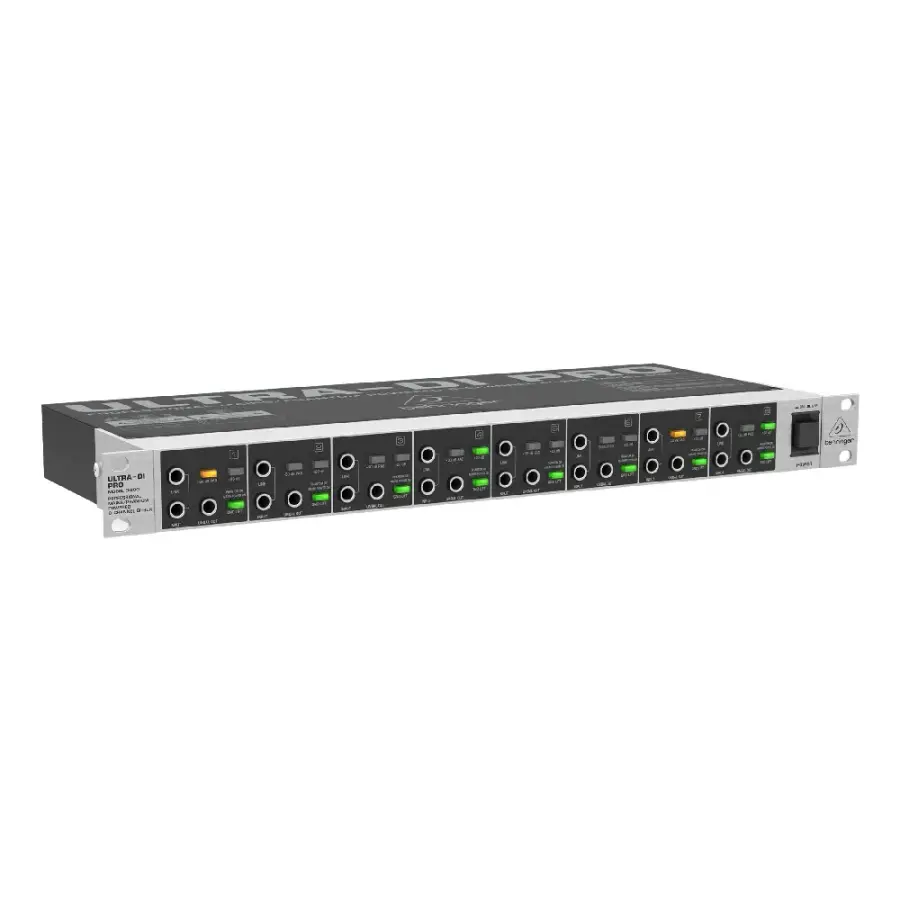

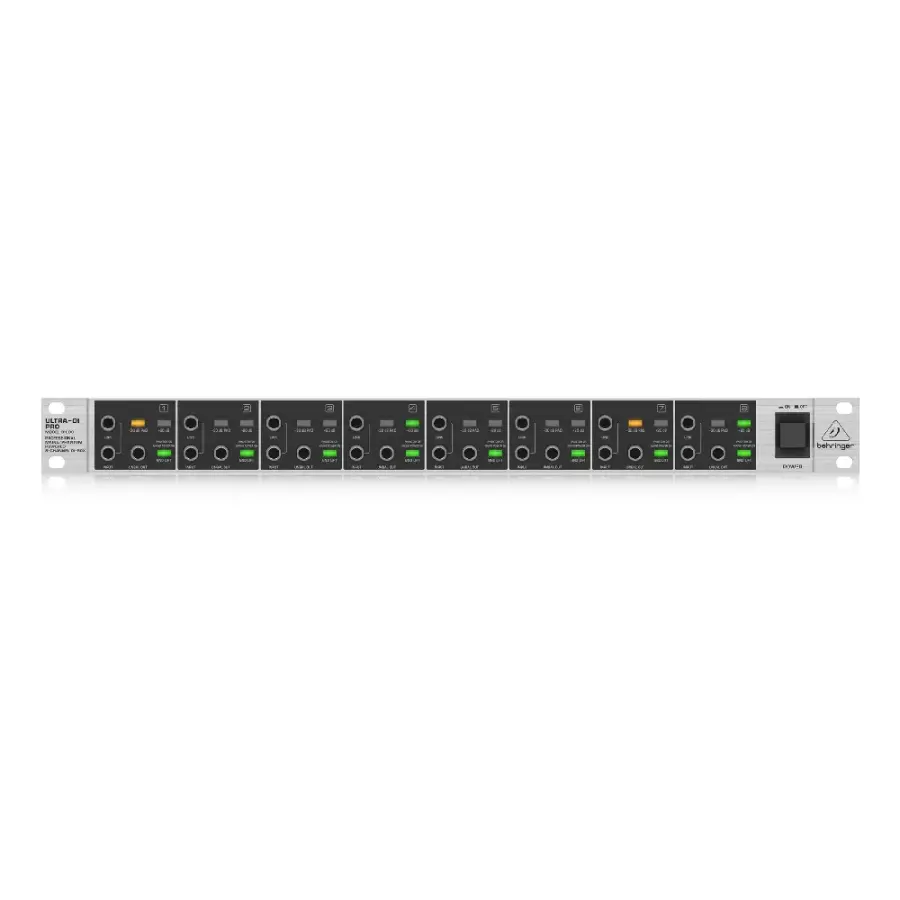

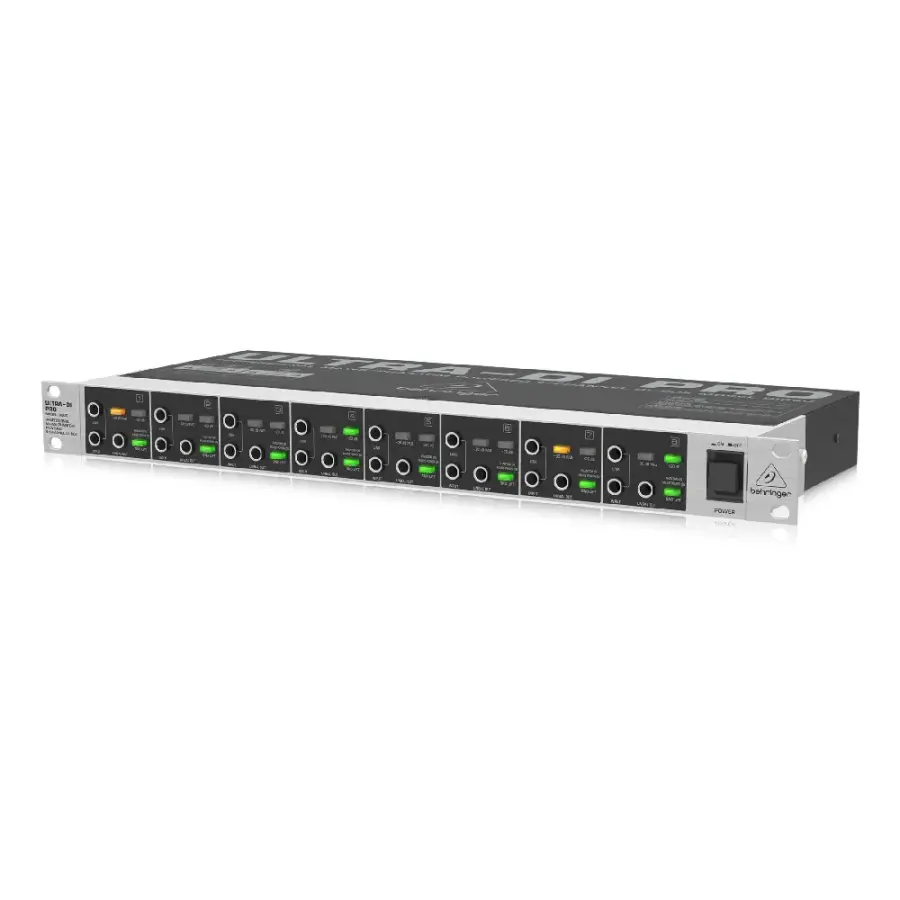

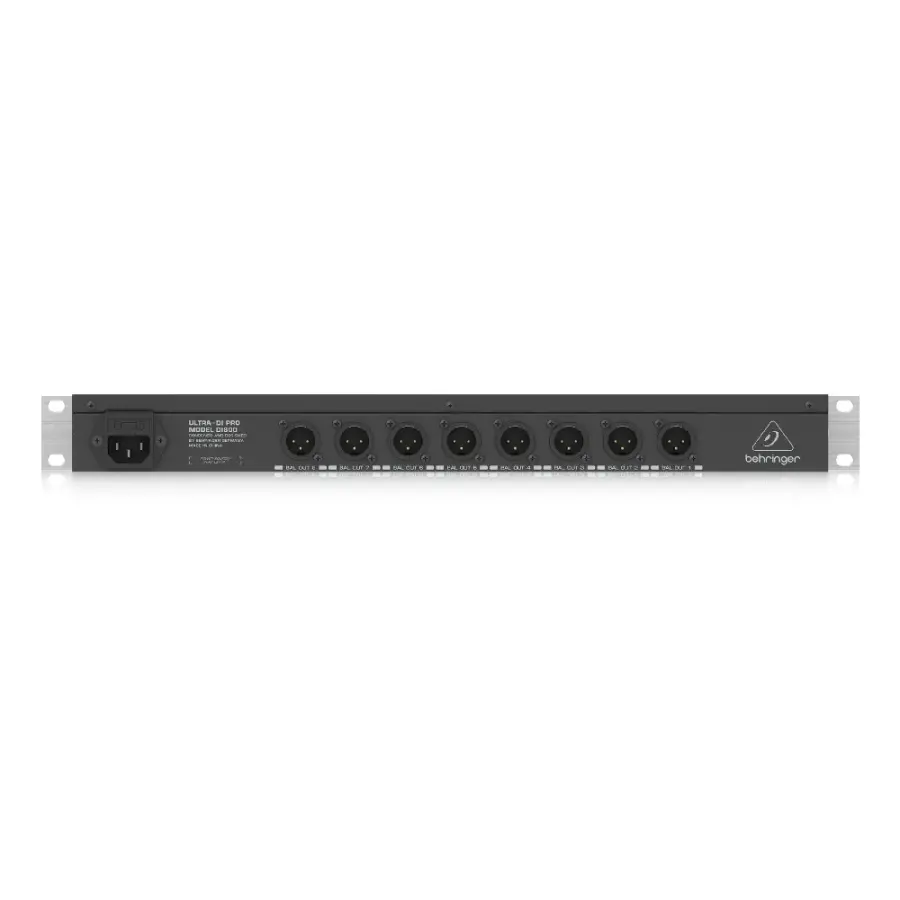

Behringer Ultra-DI Pro DI800v2 8-channel Active Instrument Direct Box

Supremely Flexible 8-channel DI

The Behringer Ultra-DI Pro DI800 v2 Active Phantom Powered 8-channel DI Box is a rackmount DI with sufficient inputs to accommodate everyone onstage or in the studio. Direct Injection (DI) boxes, of course, let you plug guitars, basses, keyboards, etc. directly into your board. For impedance matching and signal integrity, they're indispensable. The DI800 v2 is a DI on steroids. With its active circuitry, it sports buffered inputs that won't pollute your signal (as passive DIs can). Boasting a bevy of boost/attenuation, groundlift, and connectivity options, Behringer's Ultra-DI Pro DI800 v2 is your audio Swiss Army Knife.

Behringer Ultra-DI Pro DI800 v2 Active Phantom Powered 8-channel DI Box Features:

• Multi-purpose 8-channel direct injection box for stage and studio applications
• Provides impedance and signal matching for direct connection of instruments to mixers
• Servo-balanced operation gives you ruler-flat frequency response
• Optional mains or phantom-powered operation
• Low-noise op-amps for pristine sonic quality
• Allows direct connection to speaker outputs with up to 3,000W
• +20dB gain switch for pre-amplification of low-level signals
• Switchable input attenuation allows input levels of up to +40dB
• Ground Lift switch eliminates typical ground loop problems
• Link output for easy connection to further equipment
• TRS and gold-plated XLR connectors
• Illuminated switches enable operation in dark stage environments
• High-quality components and exceptionally rugged construction ensure long life

Tech Specs

• Type:Active
• Channels:8
• Pads:-30dB
• Ground Lift:Yes
• Inputs:8 x 1/4"
• Outputs:8 x XLR (balanced out), 8 x 1/4" TS (unbalanced out), 8 x 1/4" (link)
• Power Source:Standard IEC AC cable
• Manufacturer Part Number:000-CD102-00010
