Audio Technica AT4060a Cardioid Condenser Microphone

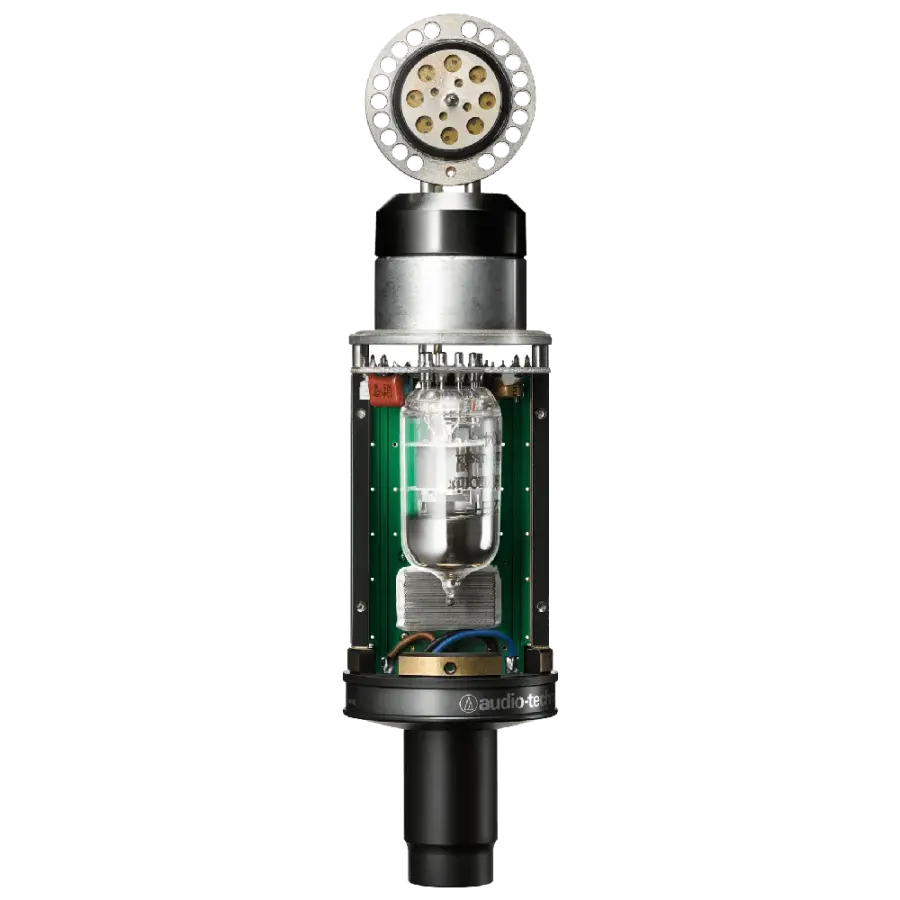

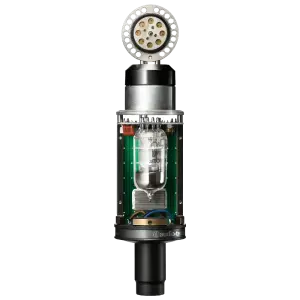

The AT4060a Cardioid Condenser Microphone is designed for use in demanding studio applications. The tube is hand-selected, individually aged and tested, then employed in a uniquely configured circuit for enhanced tube performance. Specially tuned elements improve the dynamic range and the allow the AT4060a to handle high SPLs without sacrificing high-frequency characteristics. Floating-construction mounting of the elements provides isolation from noise and vibration. The AT4060a operates in conjunction with the included tube microphone powering unit, featuring low-impedance output and a ground-lift switch.

• Vintage tube sound with the versatile performance necessary for the most demanding studio applications
• Hand-selected tubes are individually tested and aged to maintain peak performance
• Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
• Wide dynamic range, low self-noise and high max SPL capability
• Large coupling transformer provides superior low-frequency linearity
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity






  In the Box

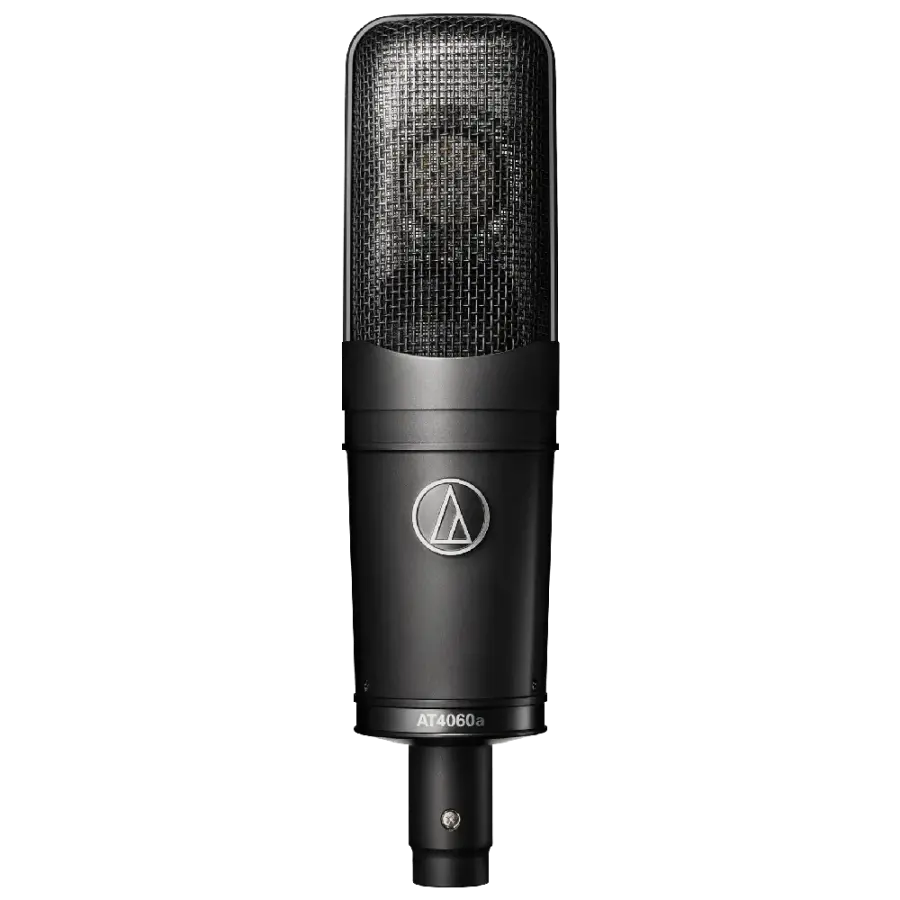

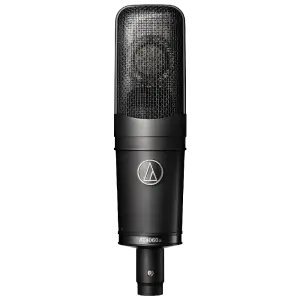

  • Audio-Technica AT4060a Cardioid Condenser Microphone

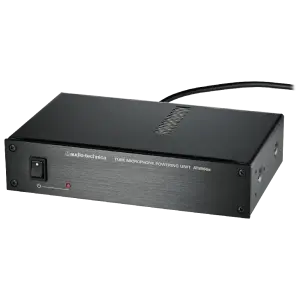

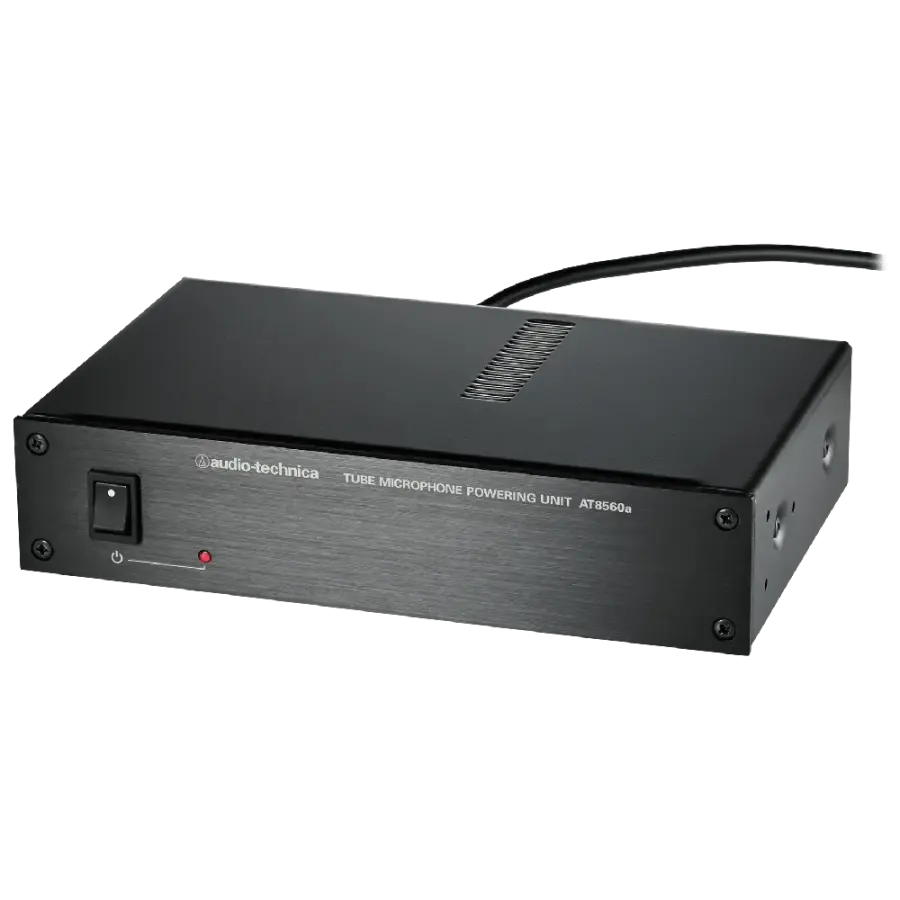

  • AT8560a Tube Microphone Powering Unit

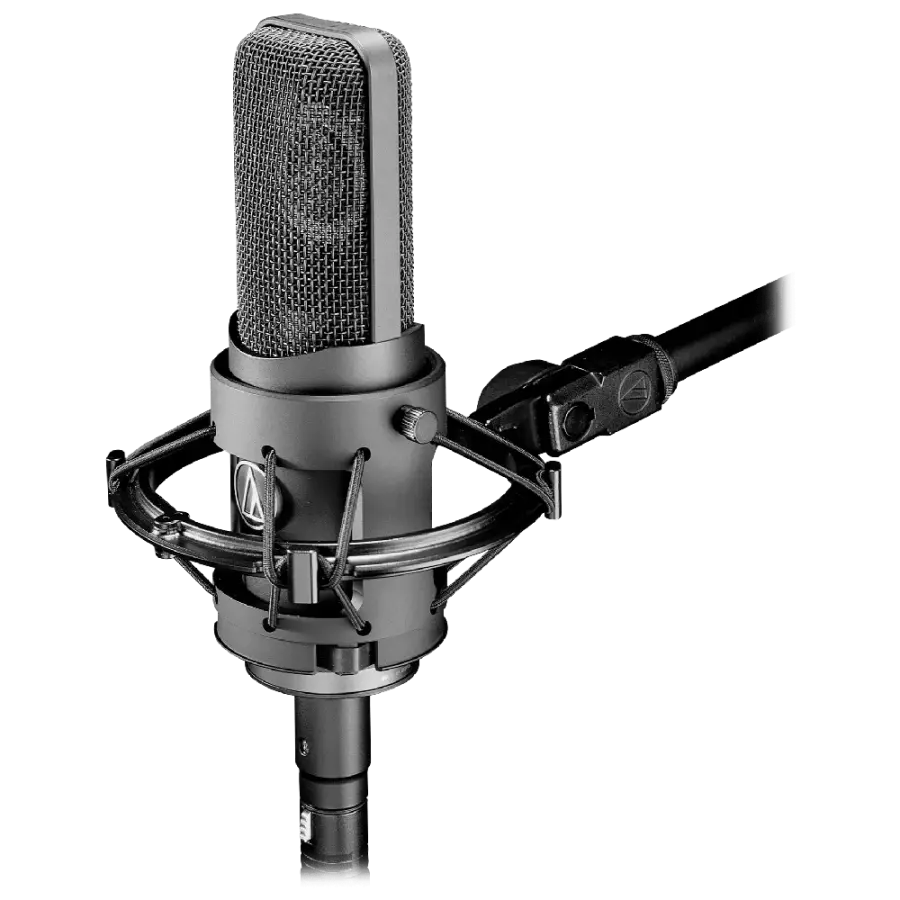

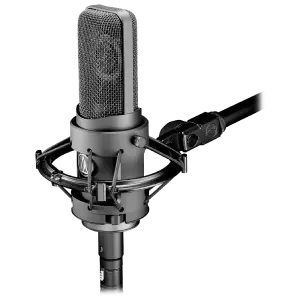

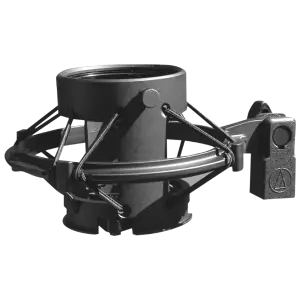

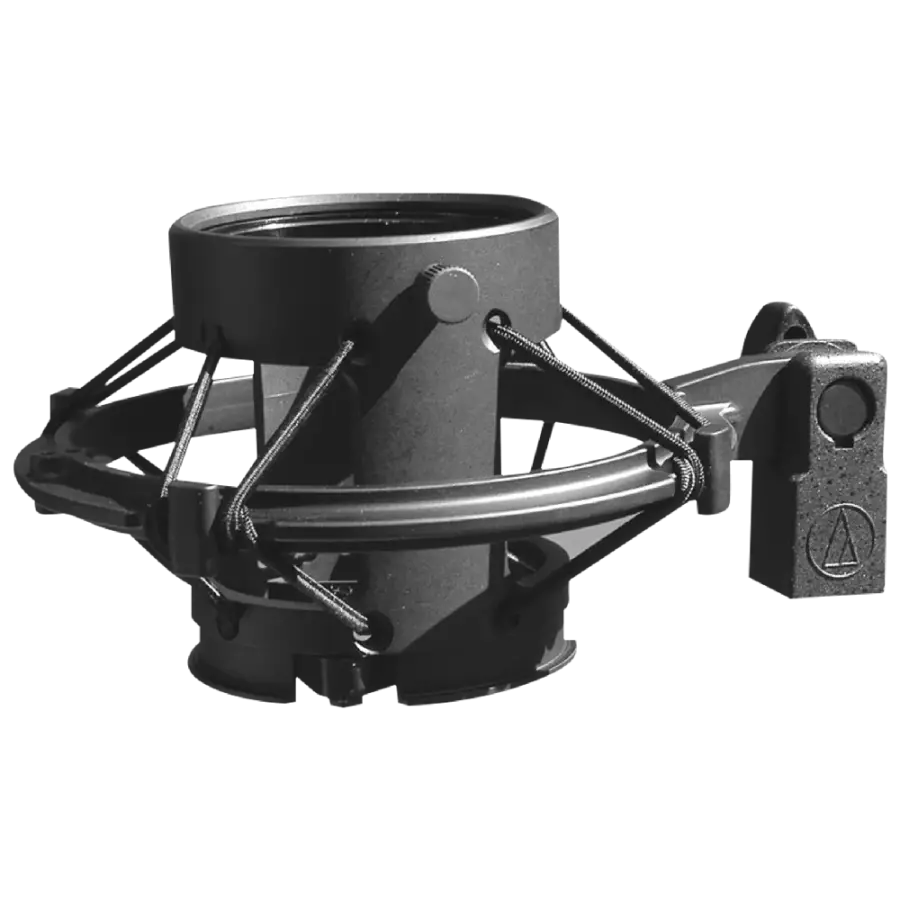

  • AT8447 Shock Mount for 5/8"-27 Threaded Stands
  • Rack-Mount Adapters for Tube Microphone Powering Unit

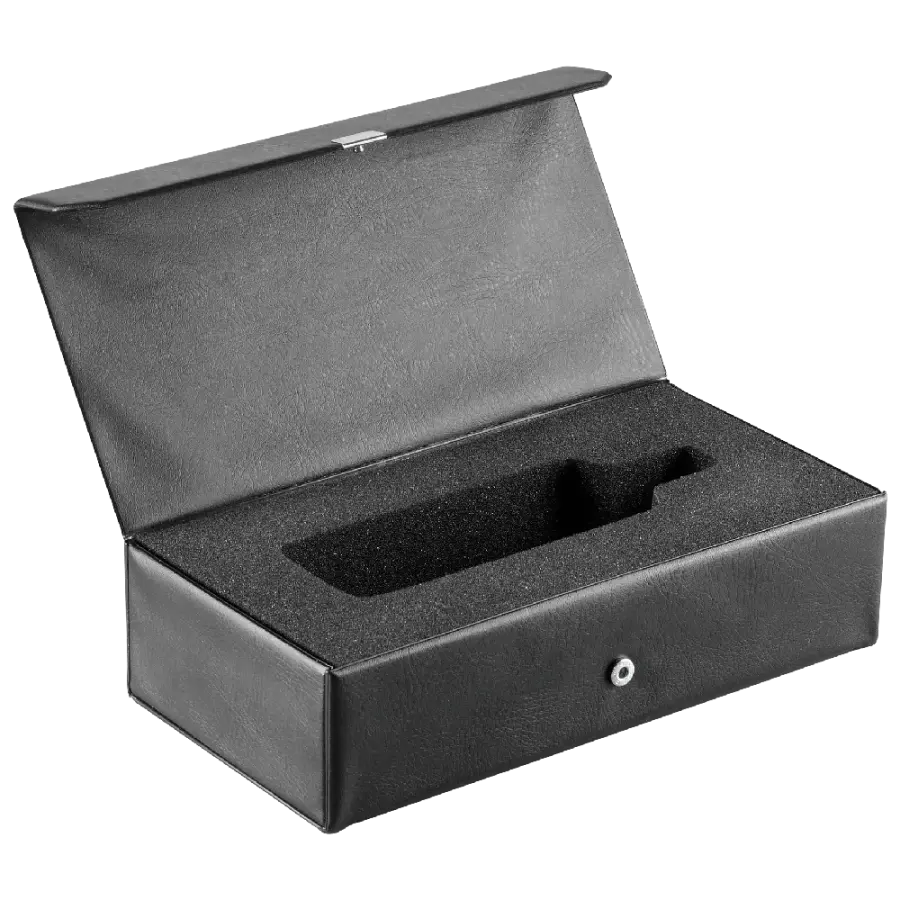

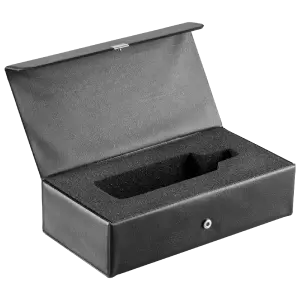

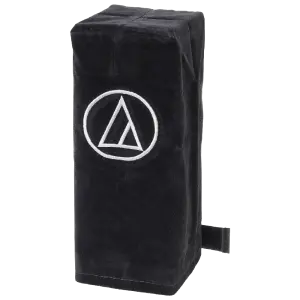

  • Protective Microphone Carrying Case









  Element	Externally polarized (DC bias) condenser
  Polar Pattern	Cardioid
  Frequency Response	20-20,000 Hz
  Open Circuit Sensitivity	34 dB (19.9 mV) re 1V at 1 Pa
  Impedance	200 ohms
  Maximum Input Sound Level	150 dB SPL, 1 kHz at 1% T.H.D.;  149 dB SPL, 1 kHz at 0.5% T.H.D.
  Noise	19 dB SPL
  Dynamic Range (typical)	131 dB, 1 kHz at Max SPL
  Signal-To-Noise Ratio	75 dB, 1 kHz at 1 Pa
  Power Requirements	AT8560 power supply (120V/230V AC)
  Weight (Microphone)	640g
  Weight (Power Supply)	1.9kg
  Dimensions	Microphone: 210mm long, 53.4mm maximum body diameter Power Supply: 210mm W x 225m D x 44mm H
  Output Connector	XLRM-type (on power supply)

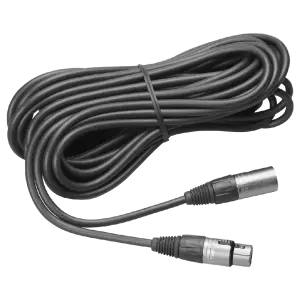

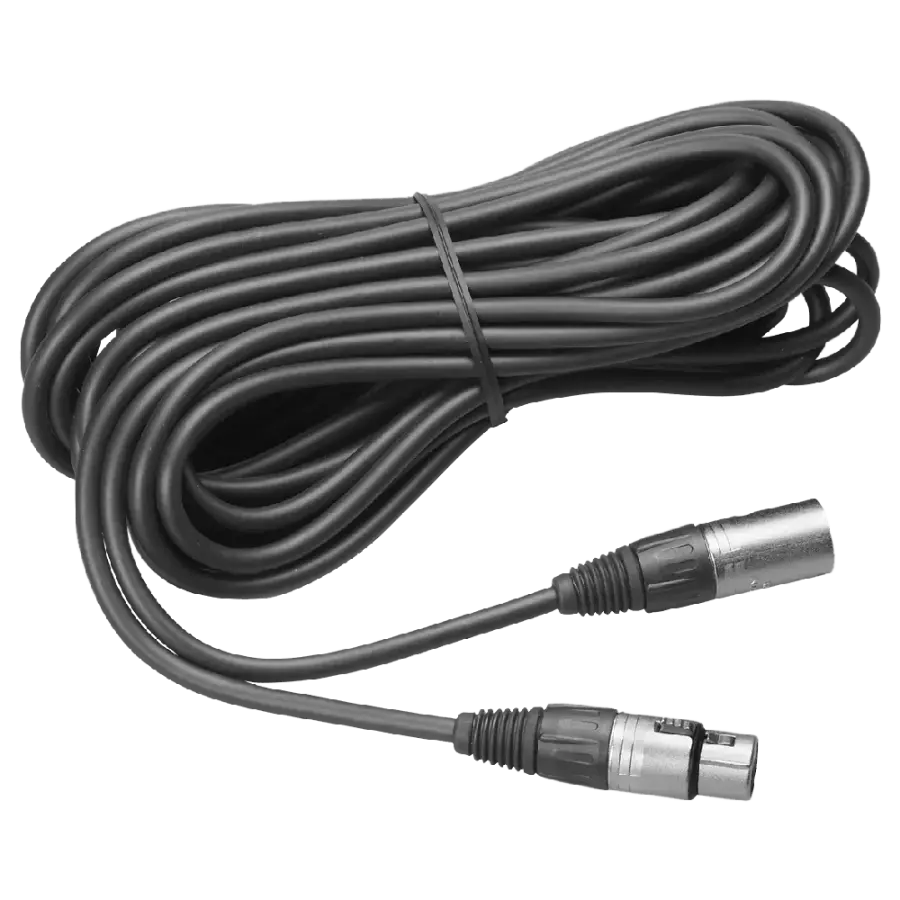

  Cables	10m cable with 6 pin XLR-type connectors for use between microphone and power supply; AC power supply cable
  Accessories Furnished	AT8560 power supply; AT8447 shock mount for 5/8″-27 threaded stands; rack-mount adapters for power supply; protective mic carrying case
